Product Information

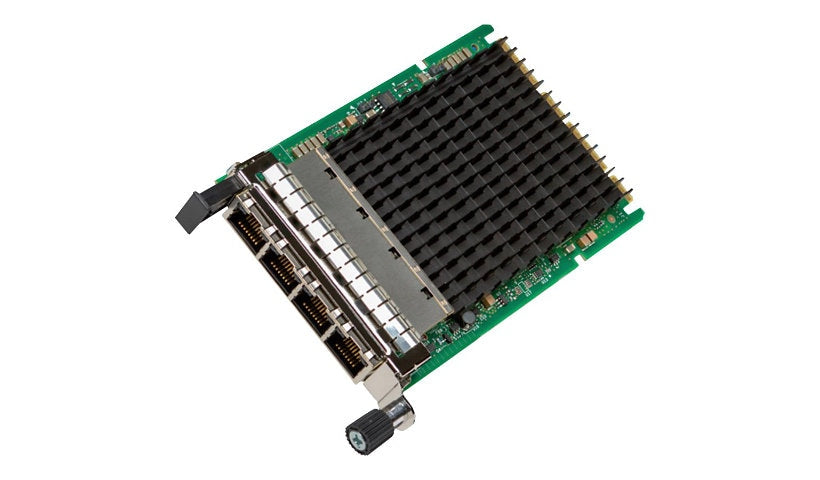

The Intel Ethernet Network Adapter X710-T4L has four multi-gig RJ-45 ports that each run at 100M, 1G, 2.5G, 5G or 10 Gigabit Ethernet. The listing gives a PCIe 3.0 x8 host interface, and the part number (X710T4LOCPV3) is the OCP 3.0 version, so please confirm the form factor your server needs. It supports Intel DDIO, Dynamic Device Personalization, Flexible Port Partitioning, VXLAN, NVGRE, GENEVE and MPLS for NFV and virtualized networks. This is the retail packaged version.
Key Features
- 4 x multi-gig RJ-45 ports
- 100M up to 10 Gbps
- Intel X710 controller
- DDIO and DDP
- VXLAN and NVGRE
- Retail pack
Product Information
Package Type: Retail
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: X710-T4L
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Black, Green, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: iSCSI, NFS
Data Transfer Rate: 10 GBps
Features: Data Direct I/O Technology (DDIO), Dynamic Device Personalization (DDP), Energy-Efficient Ethernet (EEE), Extended Message-Signaled Interrupts (MSI-X), Firmware upgradable, Flexible Port Partitioning (FPP), GENEVE support, Intelligent offloads, MPLS support, Network Function Virtualization (NFV), Network Virtualization using Generic Routing Encapsulation (NVGRE), Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq), Virtualization Technology for Connectivity (VT-c), VLAN support, VM Load Balancing (VMLB)
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 4
Interface Provided: 4 x 1/2.5/5/10GBase-T - RJ-45
Network & Adapter Ports: 100M/1G/2.5G/5G/10 Gigabit Ethernet
Host Interface: PCI Express 3.0 x8
Physical Characteristics
Form Factor: Plug-In Card
Status Indicators: Link/activity
Dimensions and Weight
Width: 4.5 inch
Depth: 3 inch
Certifications and Listing
Compliant Standards #2: BSMI, CAN/CSA C22.2, cULus, EN 62368-1:2014, FCC, IEEE 1588, KCC, RCM, RoHS 2 (2011/65/EU), UL 62368-1, VCCI
Compliant Standards: IEEE 802.1as, IEEE 802.3az
Compliant Standards: BSMI, CAN/CSA C22.2, cULus, EN 62368-1:2014, FCC, IEEE 1588, KCC, RCM, RoHS 2 (2011/65/EU), UL 62368-1, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
