Product Information

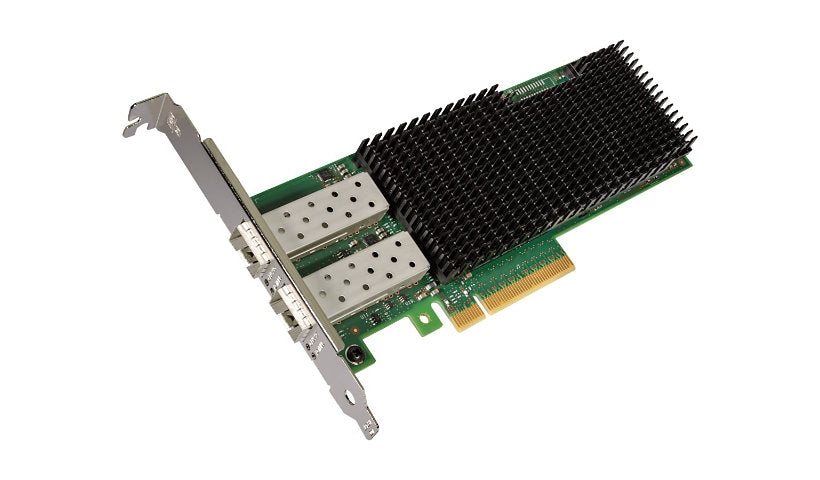

Intel's XXV710-DA2 Ethernet Network Adapter has two SFP28 ports that run at 1, 10 or 25 Gb Ethernet, on a low profile PCIe 3.0 x8 card. It supports up to 128 SR-IOV virtual functions, 256 VMDq queues, 1,536 queues per port and 4,096 VLAN tags, with DDIO, DPDK, Dynamic Device Personalization, Flexible Port Partitioning, Flow Director and overlay offloads for NFV. It handles iSCSI and NFS storage traffic with SNMP and RMON management. This is the OEM packaged version.
Key Features
- 2 x 1/10/25GbE SFP28 ports
- Intel XXV710 controller
- PCIe 3.0 x8
- 128 SR-IOV functions
- DDP and DPDK
- Low profile, OEM pack
Product Information
Package Type: OEM
Brand: Intel
Manufacturer: Intel
Product Line: Intel Ethernet Network Adapter
Model: XXV710-DA2
Product Type: Network adapter
Packaged Quantity: 1
Color Category: Black, Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet
Network Standard: DDP, IPv4, IPv6, iSCSI, NFS, SCTP, TCP/IP, UDP/IP
Remote Management: RMON, SNMP
Data Transfer Rate: 25 GBps
Capacity: Queues per port: 1536, Single Root I/O Virtualization (SR-IOV) virtual functions: up to 128, Virtual Device Queues (VMDq) supported: up to 256, VLAN tags: up to 4096
Features: Advanced Packet Filtering, Data Direct I/O Technology (DDIO), Data Plane Development Kit (DPDK), Dynamic Device Personalization (DDP), Enhanced Network Virtualization Overlays (NVO), Extended Message-Signaled Interrupts (MSI-X), Flexible Port Partitioning (FPP), GENEVE support, Intel Flow Director, Intelligent offloads, Load balancing, MPLS support, Network Function Virtualization (NFV), Network Virtualization using Generic Routing Encapsulation (NVGRE), On-chip QoS and Traffic Management, PCI-SIG SR-IOV-ready, PXE support, Receive Side Scaling (RSS), Virtual Extensible LAN (VXLAN), Virtual Machine Device Queues (VMDq), Virtual Machine Load Balancing (VLMB), Virtualization Technology for Connectivity (VT-c), VLAN Tagging, VxLAN-GPE with Network Service Headers (NSH), Watch Dog Timer (WDT)
Connectivity
PCI Specification Revision: PCIe 3.0
Port Quantity: 2
Interface Provided: 2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28
Network & Adapter Ports: 25 Gigabit SFP28
Host Interface: PCI Express 3.0 x8
Memory and Processor
Processor Brand: Intel
Processor Number: XL710-BM2
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: Plug-In Card
Low Profile: Low profile
Status Indicators: Link/activity, Link/speed
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards #2: BSMI, C-Tick, FCC Class A certified, IEEE 1588, KCC, ROHS Directive 2011/65/EU, UEFI, UL, VCCI
Compliant Standards: IEEE 802.1as, IEEE 802.3by
Compliant Standards: BSMI, C-Tick, FCC Class A certified, IEEE 1588, KCC, ROHS Directive 2011/65/EU, UEFI, UL, VCCI
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
Not sure this adapter or module fits your system? Send us your server, switch or storage model and the DatorPro team will confirm compatibility before you order.
