Product Information

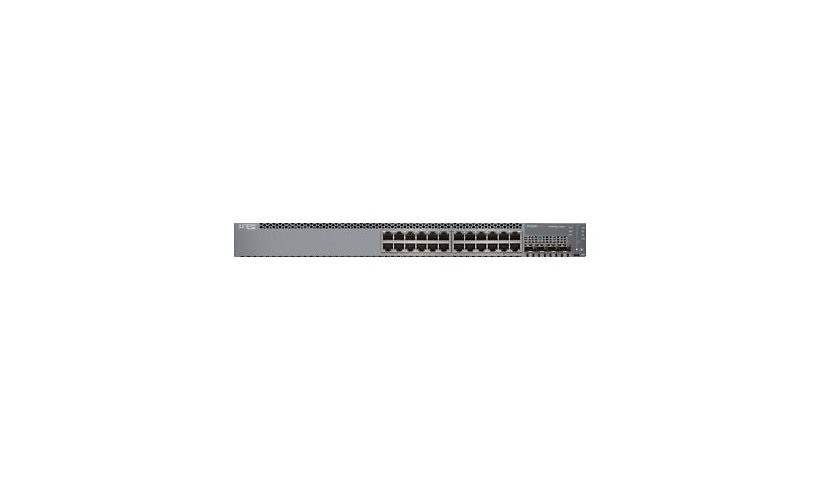

Juniper's EX2300-24T is an entry level 1U Layer 3 access switch with 24 Gigabit ports and four 10G SFP+ uplinks. Its ASIC based forwarding engine keeps traffic at wire rate, and Virtual Chassis lets up to four switches run as one logical device. It draws about 55 W from an internal power supply.
Key Features
- 24 x Gigabit RJ-45 ports
- 4 x 10G SFP+ uplinks
- Virtual Chassis, up to 4 switches
- Layer 3 managed
- Internal power supply, about 55 W
- Desktop, rack or wall mount
Product Information
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Series: EX2300
Model: EX2300-24T
Product Type: Layer 3 Switch
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 10GBase-X
Layer Supported: 4
Manageable: Yes
Connectivity
Expansion Slot Type: SFP+
Expansion Slot Details: 24 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Uplink
SFP+ Slots: 4
Shared SFP Slot: No
Uplink Port: Yes
Stack Port: No
Power
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor: Desktop, Rack-mountable, Wall Mountable
Rack Unit: 1U
Dimensions and Weight
Height: 1.8 inch
Width: 17.4 inch
Depth: 10.2 inch
Weight: 7.25 lb
Certifications and Listing
Environmentally Friendly: Yes
