Product Information

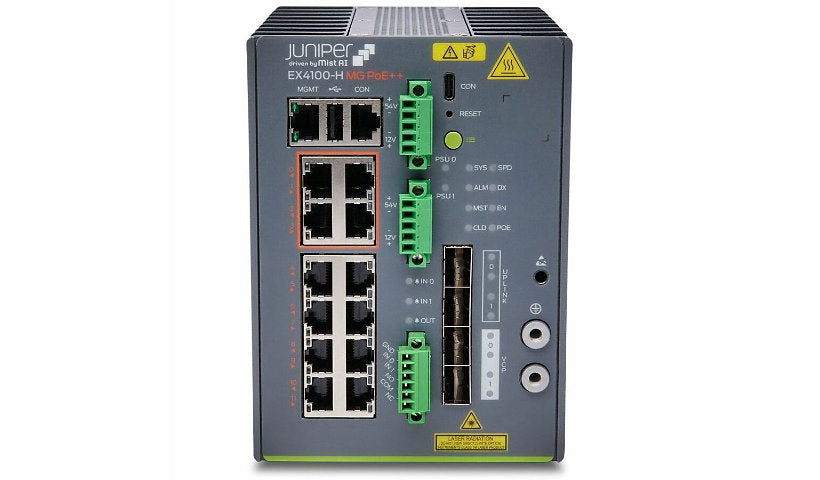

Juniper's EX4100-H-12MP-DC is a hardened fanless access switch for harsh indoor and outdoor sites, with eight Gigabit PoE++ ports and four 2.5G PoE++ ports. It has a 360 W PoE budget, runs on 24 to 60 V DC and mounts on a DIN rail, wall or magnet.
Key Features
- 8 x Gigabit PoE++ ports
- 4 x 2.5G PoE++ ports
- 360 W PoE budget
- 24 to 60 V DC power
- Fanless, rugged design
- DIN rail, wall or magnetic mount
Product Information
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Model: EX4100-H
Product Type: Ethernet Switch
Usage: Business, Camera, Campus, Data Center, Enterprise, Indoor, IoT Devices, Network, Outdoor, Surveillance
Network and Communication
Data Link Protocols: 2.5 Gigabit Ethernet, Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 2.5GBase-T
Layer Supported: 3
Manageable: Yes
Features: Fanless
Connectivity
Expansion Slot Details: 4 x 2.5 Gigabit Ethernet PoE++, 8 x Gigabit Ethernet PoE++
PoE (RJ-45) Port: Yes
Uplink Port: Yes
Stack Port: Yes
Power
Power Source: DC, PoE++, Power Supply
Input Voltage: 24 V DC, 60 V DC
PoE Budget: 360 watt
Physical Characteristics
Form Factor: DIN Rail Mountable, Magnetic Mount, Rail-mountable, Wall Mountable
Dimensions and Weight
Height: 6 inch
Width: 4.4 inch
Depth: 5.3 inch
Weight: 5.22 lb
Warranty
Limited Warranty: Lifetime
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
