Product Information

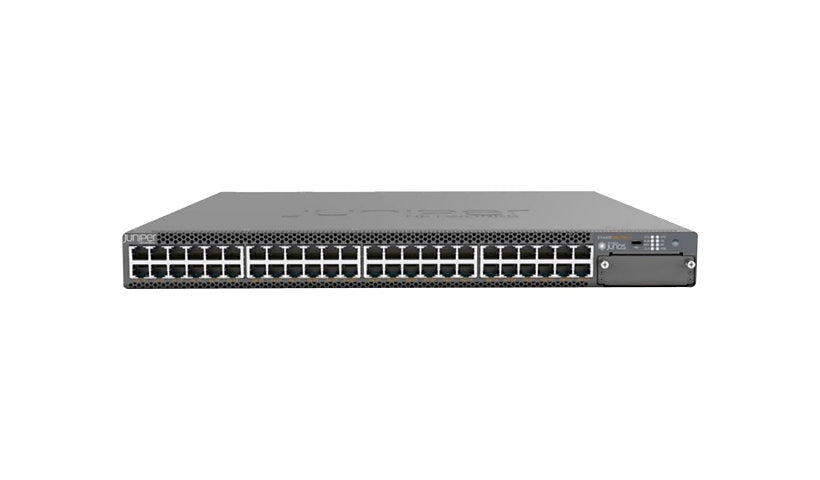

The Juniper EX4400-48MP is a 48-port access switch with 36 ports at 2.5GbE and 12 at 10GbE, all PoE++, plus two 100GbE uplinks. With a 2,200 W PoE budget it can power high-draw devices such as Wi-Fi 6 access points. Layer 3, EVPN-VXLAN and MACsec are supported, and the switch can be managed from the cloud through Juniper Mist.
Key Features
- 36 x 2.5GbE and 12 x 10GbE PoE++ ports
- 2 x 100GbE uplink ports
- 2,200 W PoE budget
- Layer 3 managed, EVPN-VXLAN, MACsec
- Cloud-ready with Juniper Mist
- 1U, redundant power supported
Product Information
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Series: EX4400
Model: EX4400-48MP
Product Type: Ethernet Switch
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Technology: 100Base-X, 10GBase-T, 2.5GBase-T
Layer Supported: 3
Manageable: Yes
Connectivity
Expansion Slot Details: 12 x 10 Gigabit Ethernet PoE++, 2 x 100 Gigabit Ethernet Uplink, 36 x 2.5 Gigabit Ethernet PoE++
Network (RJ-45): Yes
PoE (RJ-45) Port: Yes
Uplink Port: Yes
Power
Power Source: Power Supply
PoE Budget: 2200 watt
Power Supplies Supported: 2
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable, Wall Mountable
Rack Unit: 1U
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 16.9 inch
Weight: 13.01 lb
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 1 Year
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
