Product Information

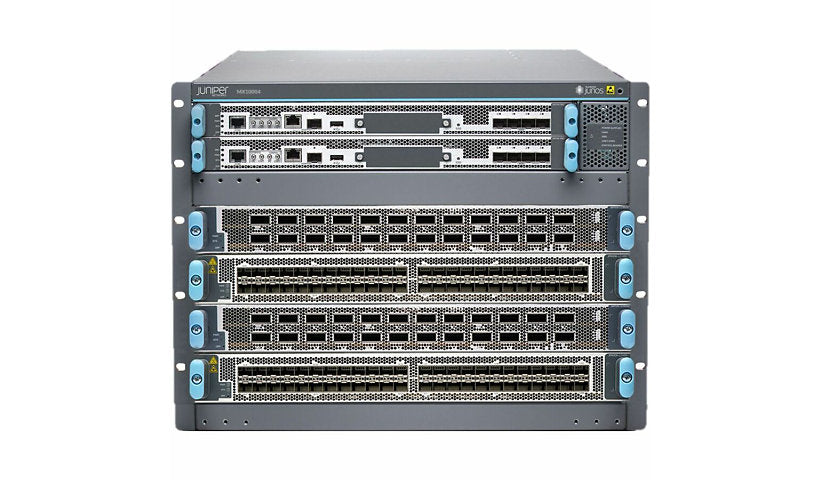

The Juniper MX10004 is a 7U modular router chassis from the MX10000 line of Universal Routing Platforms. It is aimed at service providers and cloud operators that need a high capacity edge router with room to scale, and it supports AC or DC power with redundant power supplies.
Key Features
- Up to 38.4 Tbps of system capacity, with up to 9.6 Tbps per slot
- Supports 400 Gigabit Ethernet, along with 1GbE through 100GbE line card options
- Dual redundant Routing Engines running Junos OS
- Line cards connect directly to rear switch fabric cards with no midplane, giving front to back airflow
- 7U rack mount chassis, 13 inch tall and 32 inch deep
Specifications
General
Part Number: MX10004-2F-PREM
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Series: MX
Model: MX10004
Product Type: Router Chassis
Form Factor: Rack-mountable
Rack Unit: 7U
Networking
Data Link Protocols: 400 Gigabit Ethernet
Power
Power Source: AC/DC
Redundant Power Supply Supported: Yes
Size and Weight
Height: 13 inch
Width: 17.4 inch
Depth: 32 inch
Weight: 272 lb
