Product Information

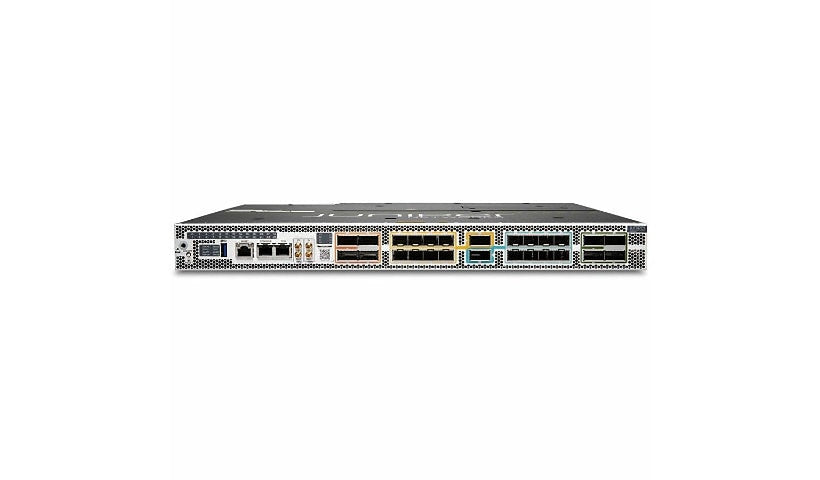

The Juniper MX301 is a fixed configuration 1U router that packs 1.6 Tbps of capacity into a single rack unit. It runs Junos OS on Juniper's sixth generation Trio silicon and is suited to edge sites, colocation spaces, mobile backhaul, cloud edge and enterprise WAN roles where space and power are tight.
Key Features
- 1.6 Tbps system capacity in a 1U chassis
- Supports up to 4 x 400GbE interfaces
- Multiservice edge features including routing, subscriber management, HQoS and security
- 64 GB RAM installed
- Dedicated management port
- 540 watt power consumption
Specifications
General
Part Number: MX301-M-HW-BASE
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Series: MX
Model: MX301
Product Type: Router
Form Factor: Rack-mountable
Rack Unit: 1U
Processor and Memory
RAM Installed: 64 GB
Networking
Data Link Protocols: 400 Gigabit Ethernet
Ports and Expansion
Management Port: Yes
Power
Power Consumption: 540 watt
Size and Weight
Height: 1.8 inch
Width: 17.3 inch
Have a question about this item or not sure it fits your setup? Contact us before you order and we will help you confirm the right part.
