Product Information

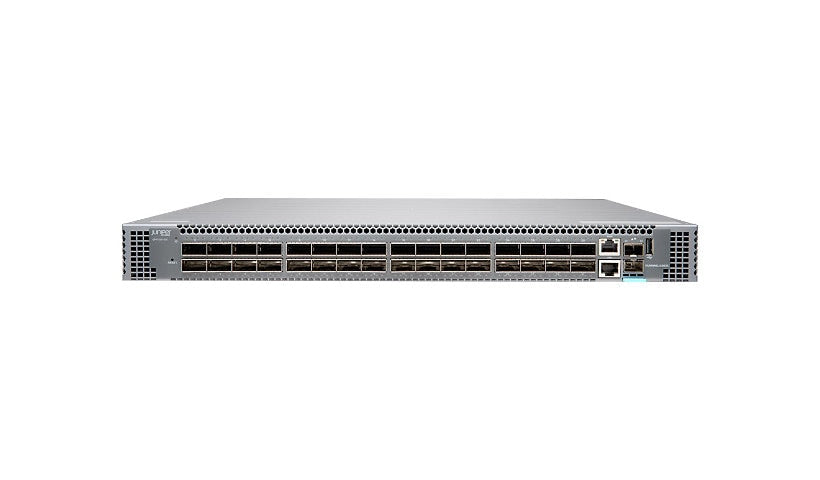

The Juniper QFX5120-32C-AFO is a 1U data center switch with 32 QSFP28 ports running at 100 Gigabit Ethernet. It handles both Layer 2 and Layer 3 traffic and supports EVPN-VXLAN, which makes it a fit for spine or aggregation roles in leaf-and-spine fabrics. This AFO model uses front-to-back (airflow out) cooling and ships with two hot-swappable power supplies for redundancy.
Key Features
- 32 x 100GbE QSFP28 ports
- Layer 3 managed switch with EVPN-VXLAN support
- 1U rack mount
- 2 power supplies installed, redundant
- AFO airflow (airflow out)
- Up to 515 W power consumption
Product Information
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Series: QFX
Model: QFX5120-32C
Product Type: Ethernet Switch
Country of Origin: Taiwan
Network and Communication
Data Link Protocols: 100 Gigabit Ethernet
Network Technology: 100GBase-X
Layer Supported: 3
Manageable: Yes
Connectivity
Expansion Slot Type: QSFP28
Expansion Slot Details: 32 x 100 Gigabit Ethernet Expansion Slot
Uplink Port: Yes
Power
Power Source: Power Supply
Frequency: 50 hertz, 60 hertz
Power Consumption: 515 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Rack Unit: 1U
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 20.3 inch
Weight: 21.12 lb
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 1 Year
