Product Information

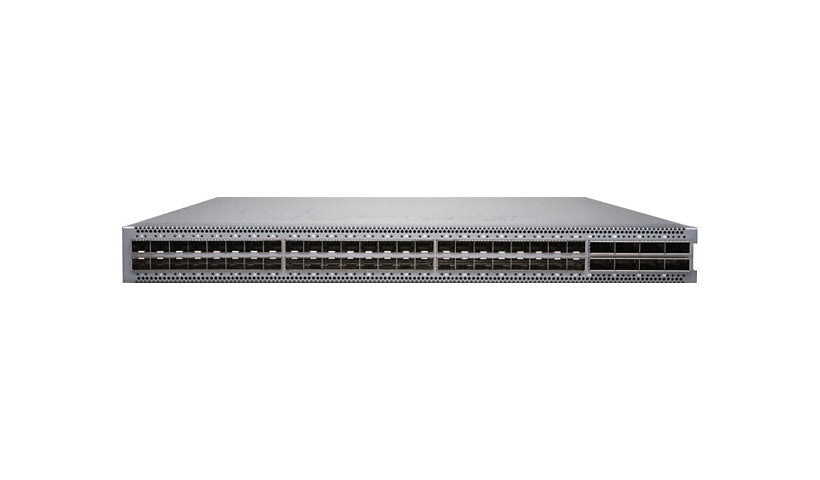

The Juniper QFX5120-48Y-AFO2 is a 1U Layer 3 data center switch, listed in a network management category. It has 48 x 25GbE ports and 8 x 100GbE QSFP28 uplinks, with up to 2 Tbps of Layer 2 and Layer 3 performance and latency as low as 550 nanoseconds. It supports EVPN-VXLAN and Layer 3 gateway routing between virtual and bare metal servers, making it suited to top of rack and aggregation roles in leaf and spine networks. It supports redundant power supplies and draws 272 W. The listing shows the series as QFX5100 while the model is QFX5120, so please confirm.
Key Features
- 48 x 25GbE ports
- 8 x 100GbE QSFP28 uplinks
- Up to 2 Tbps L2/L3
- 550 ns latency
- EVPN-VXLAN support
- 1U, redundant PSU support
Product Information
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Series: QFX5100
Model: QFX5120-48Y
Product Type: Layer 3 Switch
Network and Communication
Data Link Protocols: 100 Gigabit Ethernet, 25 Gigabit Ethernet
Network Technology: 100GBase-X, 25GBase-X
Layer Supported: 3
Manageable: Yes
Connectivity
Expansion Slot Type: QSFP28, SFP+
Expansion Slot Details: 48 x 25 Gigabit Ethernet Expansion Slot, 8 x 100 Gigabit Ethernet Expansion Slot
SFP+ Slots: 48
Shared SFP Slot: No
Uplink Port: Yes
Power
Power Source: Power Supply
Power Consumption: 272 watt
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Rack Unit: 1U
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 20.5 inch
Weight: 23.70 lb
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 1 Year
Not sure this device fits your network? Send us your current equipment models and what you need to monitor or manage, and the DatorPro team will confirm compatibility before you order.
