Product Information

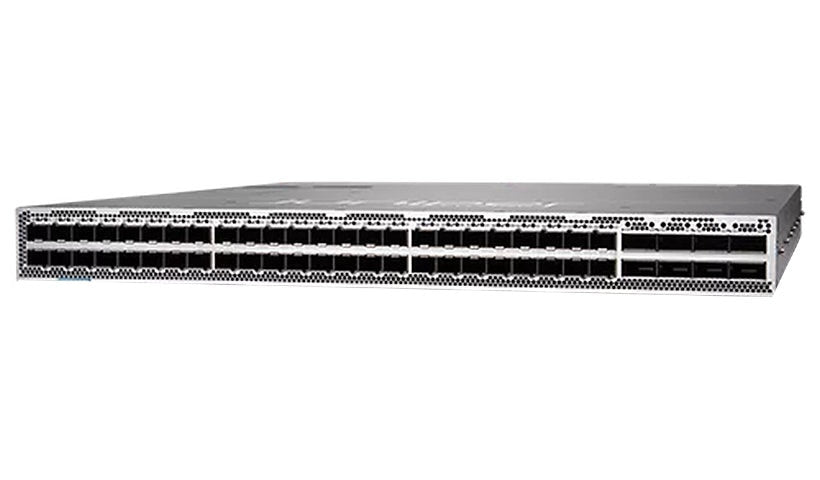

The Juniper QFX5130-48C-AFO is a 1U top-of-rack switch with 48 dual-speed 100GbE downlink ports and eight 400GbE uplinks. It supports 10GbE through 400GbE, IEEE 1588 PTP (boundary clock, hardware timestamps), automation tools and secure ZTP. Front-to-back airflow and redundant power supplies are supported.
Key Features
- 48 x 100GbE downlink ports
- 8 x 400GbE QSFP56-DD uplinks
- IEEE 1588 PTP boundary clock
- Automation, monitoring, secure ZTP
- 1U, front-to-back airflow
- Redundant power supported, 554 W
Product Information
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Series: QFX5130
Model: QFX5130-48C-AFO
Product Type: Ethernet Switch
Usage: Campus, Data Center, Network
Network and Communication
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet
Network Technology: 100GBase-X, 10GBase-X
Layer Supported: 2
Manageable: Yes
Connectivity
Expansion Slot Type: QSFP56-DD
Power
Power Source: Power Supply
Power Consumption: 554 watt
Power Supplies Supported: 2
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Rack Unit: 1U
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 20.5 inch
Warranty
Limited Warranty: 1 Year
