Product Information

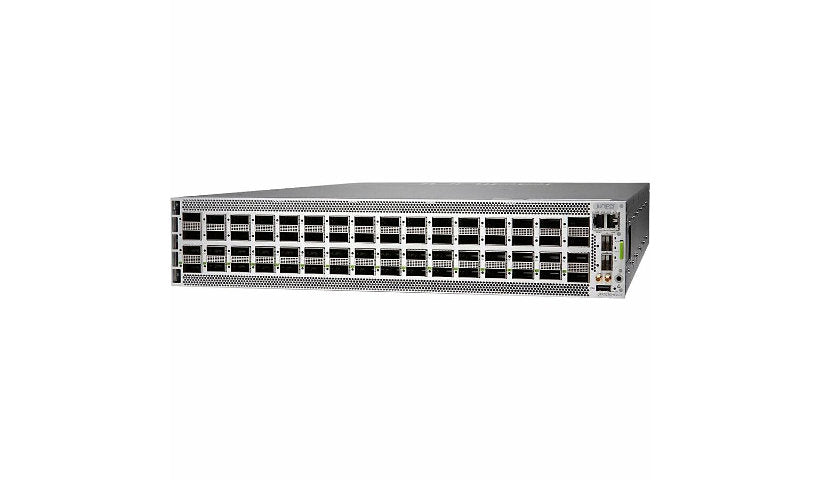

The Juniper QFX5230-64CD-D-AFO is a 2U switch with 64 QSFP56-DD ports at 400GbE, built for high-bandwidth spine layers in AI and ML data centers. It supports Layer 3 routing and ships with two redundant power supplies. This version uses airflow out cooling.
Key Features
- 64 x 400GbE QSFP56-DD ports
- Layer 3 managed
- 2U rack mount, AFO airflow
- 2 power supplies installed, redundant
- 580 W power consumption
Product Information
Brand: Juniper
Manufacturer: Juniper Networks, Inc
Series: QFX
Model: QFX5230-64CD
Product Type: Ethernet Switch
Usage: Data Center, Network
Network and Communication
Data Link Protocols: 400 Gigabit Ethernet
Layer Supported: 3
Manageable: Yes
Connectivity
Expansion Slot Type: QSFP56-DD
Expansion Slot Details: 64 x 400 Gigabit Ethernet Expansion Slot
Power
Power Source: Power Supply
Power Consumption: 580 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Rack Unit: 2U
Dimensions and Weight
Height: 3.4 inch
Width: 17.4 inch
Depth: 25.6 inch
Weight: 55 lb
Certifications and Listing
Environmentally Friendly: Yes
Warranty
Limited Warranty: 1 Year
