Product Information

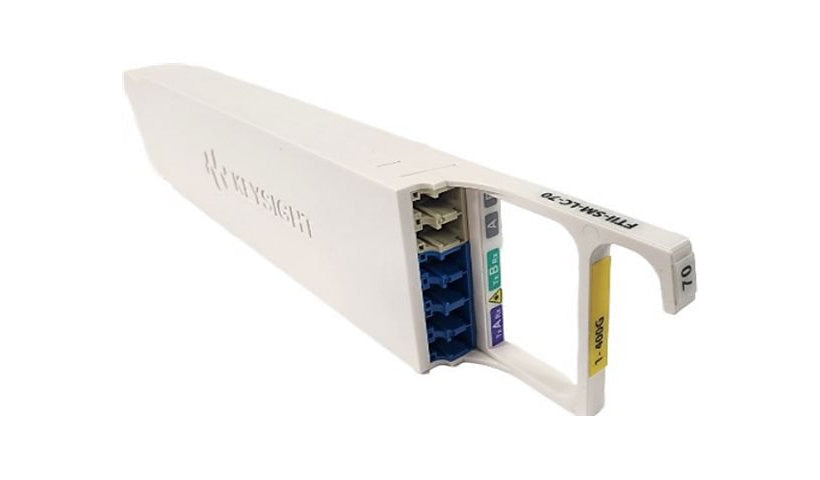

The Keysight Flex Tap II gives you passive network visibility with a 70:30 split ratio that keeps live traffic performing while sending a copy to your tools. It supports speeds from 1G to 400G over 8.5 micron singlemode fiber with LC UPC connectors at 1260-1340 nm and 1530-1565 nm, with 2.0 dB insertion loss. It runs from 0 to 40°C at up to 95% non-condensing humidity, mounts in RK-FLEX-24, RK-FLEX-ID24 or RK-FLEX-8 rack units and meets RoHS and UKCA.
Specifications:
Brand: Keysight
Manufacturer part number: FTII-SM-LC-70
Product line: Keysight Flex Tap II
Cable type: Tap splitter
Features: 70:30 split ratio, 8.5/125µm core size, Insertion loss 2.0 db
Color: White
Operating temperature: 32°F to 104°F
Quantity in package: 1
Standards and compliance: RoHS, UKCA
Split ratio: 70/30
Insertion loss: 2.0 dB
Wavelengths: 1260-1340 nm, 1530-1565 nm
