Product Information

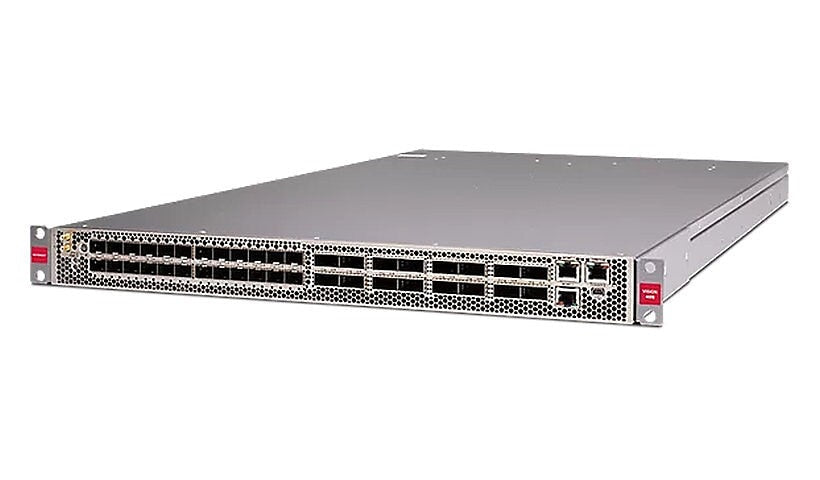

The Keysight Ixia Vision 400 (SYS-V400-BASE-AC) is a 1U network packet broker that filters, transforms and forwards traffic to monitoring and security tools. It has 16 x 400G QSFP-DD and 24 x 50G SFP56 ports, supporting up to 64 x 100 GbE or 152 x 10 GbE ports, with 9.2 Tbps of backplane bandwidth. A 16-core CPU and built-in 400G FPGA PacketStack handle header stripping, IP and MAC masking, L2GRE and VXLAN tunnel termination, load balancing and the Dynamic Filter Compiler. It offers a web UI, REST APIs and SNMP traps, has hot swap fans and front to back airflow, and ships with one 100 to 240 V AC power supply with an optional second for 1+1 redundancy.
Key Features
- 16 x 400G, 24 x 50G ports
- 9.2 Tbps bandwidth
- FPGA PacketStack
- Header strip, masking
- VXLAN, L2GRE termination
- 1U, 1+1 PSU optional
Product Information
Brand: Keysight
Manufacturer: Keysight Technologies, Inc.
Product Line: Keysight Vision
Model: 400
Product Type: Network packet broker
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Switching Type: 50 Gigabit Ethernet / 400 Gigabit Ethernet
Manageable: Yes
Performance: Backplane bandwidth: 9.2 Tbps
Capacity: 100GbE ports: up to 64, 10GbE ports: up to 152
Features: 16-core CPU, Built-in 400G FPGA based PacketStack, Dynamic Filter Compiler, Header stripping, Hot swappable fan, IP/MAC masking, L2GRE tunneling, Load balancing, Network Timing Protocol (NTP), Non-Return-to-Zero (NRZ), Pulse-amplitude-modulation (PAM4), RESTful APIs, SNMP traps, Tunnel termination, User session filtering, VxLAN tunneling, Web-based UI
Connectivity
Port Quantity: 24
Port Type: 50 Gigabit SFP56
Ports (2nd) Quantity: 16
Ports Type (2nd): 400 Gigabit QSFP-DD
Interface Provided: 16 x 400Gbit LAN QSFP-DD, 24 x 50Gbit LAN SFP56, Management, Serial (console)
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1 (with optional power supply)
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 85% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.8 inch
Width: 17.5 inch
Depth: 31 inch
Weight: 39.68 lbs
Certifications and Listing
Compliant Standards: CISPR 24, CISPR 32, FCC Part 15 B Class A, ICES-003 Class A, IEC 62368-1:2018
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
