Product Information

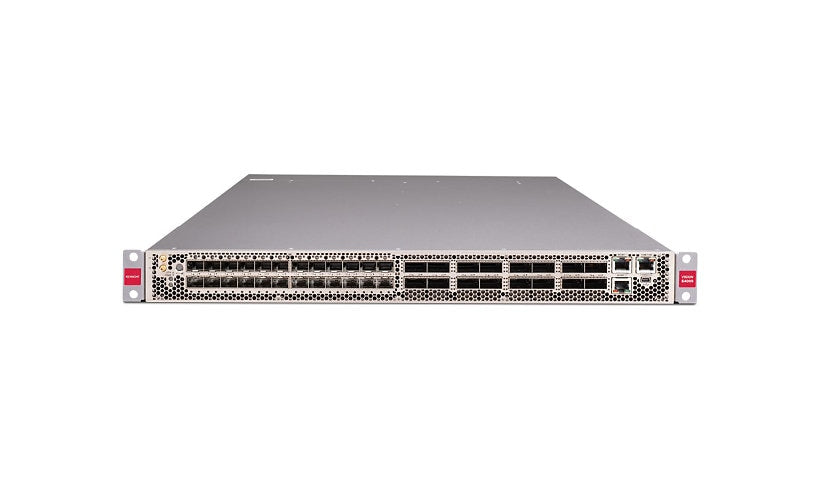

The Keysight Vision E400S (SYS-VE400S-BASE-AC) is a 1U network monitoring packet broker with a non blocking 9.2 Tbps backplane. It has sixteen QSFP-DD ports for 10 to 400GbE and twenty-four SFP28/SFP56 ports for 10 to 50GbE, plus console and management ports. It supports PTP timing, HeartBeat, high availability, REST APIs, SNMP traps, syslog and LDAP, RADIUS and TACACS+ with TLS 1.2. Dual hot plug AC supplies and redundant hot swap fans, back to front airflow.
Key Features
- Network packet broker
- 16 x QSFP-DD up to 400GbE
- 24 x SFP28/SFP56
- 9.2 Tbps backplane
- Dual hot plug PSU
- 1U, back to front air
Product Information
Brand: Keysight
Manufacturer: Keysight Technologies, Inc.
Product Line: Keysight Vision
Model: E400S
Product Type: Network monitoring device
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 400 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet
Network Standard: DHCP, IPv4, IPv6
Remote Management: LDAP, RADIUS, SNMP 1, SNMP 2, SNMP 3, TACACS+, TLS 1.2, Web GUI
Network Device: Backplane switching capacity: 9200 Gbps
Features: Event logging, Event management, HeartBeat Technology, High Availability, Non-blocking architecture, Precision Time Protocol (PTP), Redundant hot swappable fans, RESTful APIs, SNMP traps, Syslog support
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x management - RJ-45, 16 x 10Gb Ethernet/25Gb Ethernet/40Gb Ethernet/100Gb Ethernet/200Gb Ethernet/400Gb Ethernet - QSFP-DD, 24 x 10Gb Ethernet/25Gb Ethernet/50Gb Ethernet - SFP28 / SFP56
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 85% RH (non-condensing)
MTBF: 79,833 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Back to front airflow
Dimensions and Weight
Height: 1.8 inch
Width: 17.5 inch
Depth: 31 inch
Weight: 35.27 lbs
Certifications and Listing
Compliant Standards: Annex II (EU) 2015/863, AS/NZS CISPR 32 Class A, CAN ICES-003(B)/NMB003(B), China RoHS, CISPR 32 Class A, CISPR 35, CSA C22.2 No. 62368-1, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B Class A, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 62368-1, IEEE 1588, KS C 9610-3-2:2020, KS C 9610-3-3:2020, KS C 9832 Class A, KS C 9835, ROHS Directive 2011/65/EU, UL 62368-1, VCCI-CISPR 32 Class A, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
