Product Information

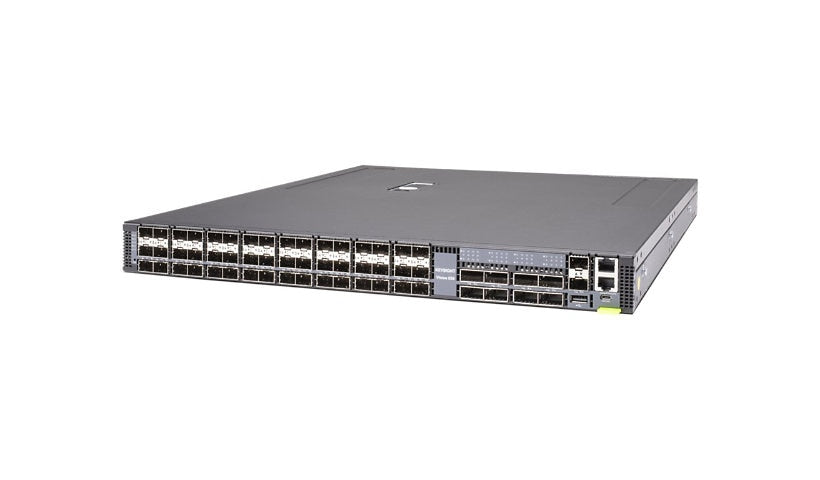

The Keysight Vision E50 (SYS-VE50-AC) is a 1U network monitoring device with 48 x 1/10/25G SFP28 ports and 8 x 40/100G QSFP28 ports, plus RJ-45 console and management. It offers 2,000 Gbps of switching capacity with zero packet loss, and supports aggregation and filtering modes, dynamic packet capture, tunneling, traffic replication, load balancing and the Dynamic Filter Compiler. It is managed by web GUI, REST APIs and SNMP v1/v2/v3, with LDAP, RADIUS, TACACS+ and TLS 1.2. Two hot plug, redundant power supplies run on 100 to 240 V AC with 550 W operating draw, and redundant hot swap fans move air front to back. It operates from 0 to 45 °C at 10 to 90 percent humidity, with an MTBF of 248,028 hours.
Key Features
- 48 x 25G SFP28 ports
- 8 x 40/100G QSFP28
- 2 Tbps, zero packet loss
- Filter and aggregate modes
- Dual redundant PSUs
- 1U, front to back airflow
Product Information
Brand: Keysight
Manufacturer: Keysight Technologies, Inc.
Product Line: Keysight Vision
Model: E50
Product Type: Network monitoring device
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: DHCP, IPv4, IPv6
Remote Management: LDAP, RADIUS, SNMP 1, SNMP 2, SNMP 3, TACACS+, TLS 1.2, Web GUI
Network Device: Backplane switching capacity: 2000 Gbps
Features: Aggregation mode, Dynamic Filter Compiler, Dynamic packet capture, Filtering mode, Load balancing, Redundant hot swappable fans, RESTful APIs, SNMP traps, SSID to VLAN tagging, Traffic replication, Tunneling, Zero packet loss
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x management - RJ-45, 48 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28, 8 x 40Gb Ethernet/100Gb Ethernet - QSFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Consumption Operational: 550 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
MTBF: 248,028 Hours
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 21.1 inch
Weight: 22.05 lbs
Certifications and Listing
Compliant Standards: Annex II (EU) 2015/863, AS/NZS CISPR 32 Class A, CAN ICES-003(B)/NMB003(B), China RoHS, CISPR 32 Class A, CISPR 35, CSA C22.2 No. 62368-1, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B Class A, IEC 61000-3-2, IEC 61000-3-3, IEC/EN 62368-1, IEEE 1588, KS C 9610-3-2:2020, KS C 9610-3-3:2020, KS C 9832 Class A, KS C 9835, ROHS Directive 2011/65/EU, UL 62368-1, VCCI-CISPR 32 Class A, WEEE 2012/19/EU
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this device fits your network? Send us your current equipment models and what you need to monitor or manage, and the DatorPro team will confirm compatibility before you order.
