Product Information

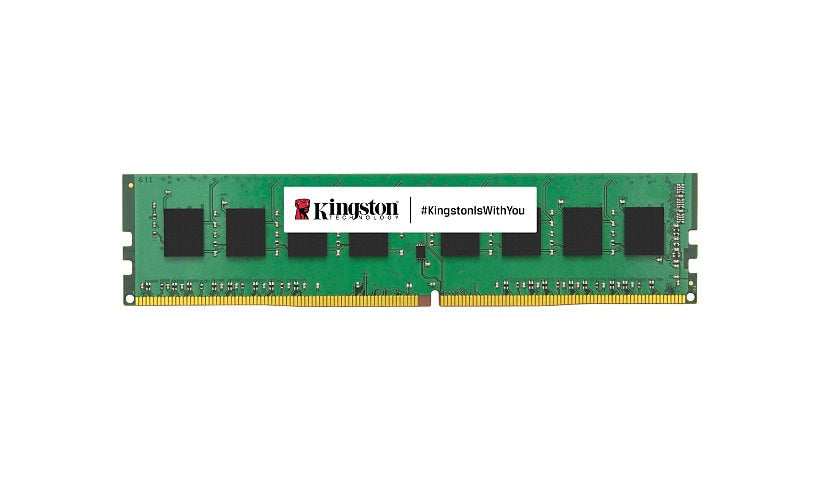

The Kingston ValueRAM KVR32N22S6/8 is an 8 GB DDR4 unbuffered, non-ECC single rank 288-pin DIMM rated PC4-25600 (3200 MT/s) at CL22 22-22-22 and 1.2 V, with 1024 x 16 chips, sixteen banks, on-die termination, SPD and gold contacts, 1.23 in tall.
Key Features
- 8 GB DDR4-3200 DIMM
- Single rank x16
- CL22 at 1.2 V
- Non-ECC, unbuffered
- Gold contacts
- Kingston ValueRAM
Product Information
Regional Exceptions: Russia - 10 years
Brand: Kingston
Manufacturer: Kingston Technology Company
Product Line: Kingston ValueRAM
Product Type: Memory module
Packaged Quantity: 1
Memory and Processor
Data Integrity Check: Non-ECC
Memory Specification Compliance: PC4-25600
Memory Voltage: 1.2 volt
Registered or Buffered: Unbuffered
CAS Latency: CL22
Chips Organization: 1024 x 16
Latency Timings: 22-22-22
Module Configuration: 1024 x 64
Plating: Gold
RAM Features: Low-power auto self refresh (LPASR), On-Die Termination (ODT), Serial Presence Detect (SPD), Single rank, Sixteen banks
Module Height (inch): 1.23
Memory Type: DRAM
Ram Capacity: 8 GB
Memory Technology: DDR4 SDRAM
Form Factor (RAM): DIMM 288-pin
Technical Information
Upgrade Type: Generic
Dimensions and Weight
Height: 1.2 inch
Width: 5.2 inch
Certifications and Listing
Compliant Standards: Halogen-free, JEDEC, RoHS
Warranty
Limited Warranty: Limited Lifetime
