Product Information

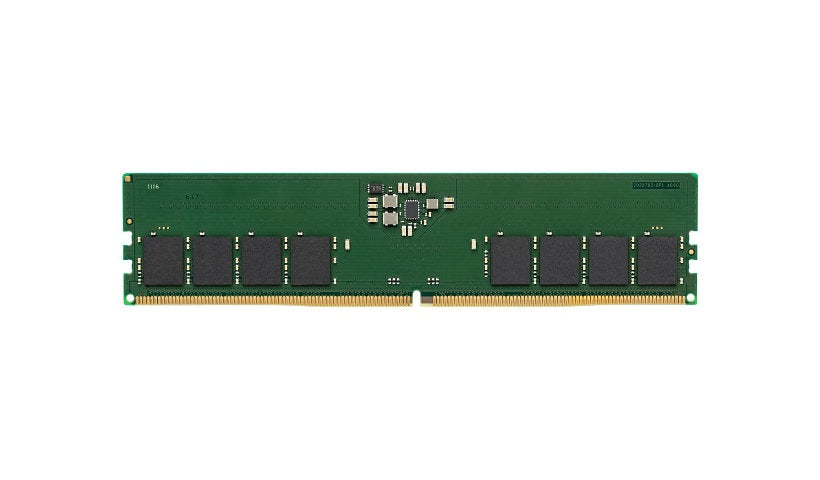

The Kingston ValueRAM KVR56U46BS8-32 is a 32 GB single rank DDR5 unbuffered 288-pin DIMM rated PC5-44800 (5600 MT/s) at CL46 46-45-45 and 1.1 V, with on-die ECC, x8 chips in a 4096 x 64 layout and gold contacts. ValueRAM is 100 percent tested memory for generic systems.
Key Features
- 32 GB DDR5-5600 DIMM
- Single rank
- CL46 at 1.1 V
- On-die ECC
- Gold contacts
- Kingston ValueRAM
Product Information
Compatible to OEM Part Numbers: Kingston KVR56U46BS8-32
Brand: Kingston
Manufacturer: Kingston Technology Company
Product Line: Kingston ValueRAM
Product Type: Memory module
Packaged Quantity: 1
Memory and Processor
Data Integrity Check: On-die ECC
Memory Specification Compliance: PC5-44800
Memory Voltage: 1.1 volt
Registered or Buffered: Unbuffered
CAS Latency: CL46
Chips Organization: X8
Latency Timings: 46-45-45
Module Configuration: 4096 x 64
Plating: Gold
RAM Features: Single rank
Memory Type: DRAM
Ram Capacity: 32 GB
Memory Technology: DDR5 SDRAM
Form Factor (RAM): DIMM 288-pin
Technical Information
Upgrade Type: Generic
Dimensions and Weight
Height: 1.2 inch
Width: 5.2 inch
Certifications and Listing
Compliant Standards: Halogen-free, JEDEC, RoHS, UL 94 V-0
Warranty
Limited Warranty: Limited Lifetime
