Product Information

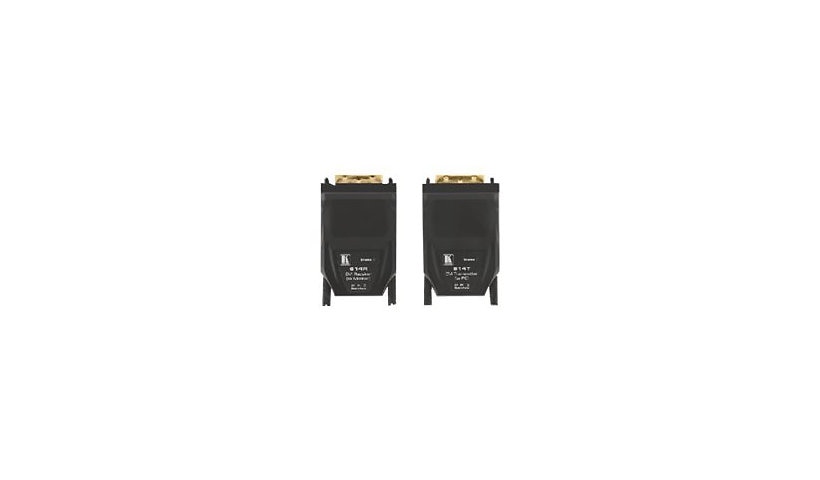

Kramer's 614T and 614R are a small, detachable optical transmitter and receiver pair that carry uncompressed DVI video up to 1920 x 1200 at 60 Hz over one multimode fiber with SC connectors. The 614T converts DVI to light and the 614R converts it back, reaching up to 1640 ft.
Key Features:
- DVI input (614T) and DVI output (614R)
- Up to 1920 x 1200 at 60 Hz, uncompressed
- Single multimode fiber, SC connectors
- Range up to 1640 ft
- Laser Class 1; IEC 60601-1-2
Specifications:
- Brand: Kramer
- Manufacturer Part Number: 614R/T
- Standards & Compliance: IEC 60601-1-2, IEC 60825-1, Laser Class 1
- Max Bandwidth: 6.75 GBps
- Feature Set: HDTV Compatible
- Max Transfer Distance: 1640 ft
- Product Category: Video extender
- Interface Provided: 1 x DVI (input), 1 x DVI (output), 1 x network (input) - SC multi-mode, 1 x network (output) - SC multi-mode
- KVP Max Resolution: 1920 x 1200
- KVM V-Sync Rate At Max Resolution: 60 Hz
- Max Operating Temperature: 104 degree Fahrenheit
- Min Operating Temperature: 32 degree Fahrenheit
- Operating Humidity: 10 85% (non-condensing)
- Device Type: External power adapter
- Cables: 1 x fiber optic cable
- Depth: 2.2 in
- Listed Dimensions: Height 0.6 in, Width 1.5 in
- Weight: 4.94 oz
