Product Information

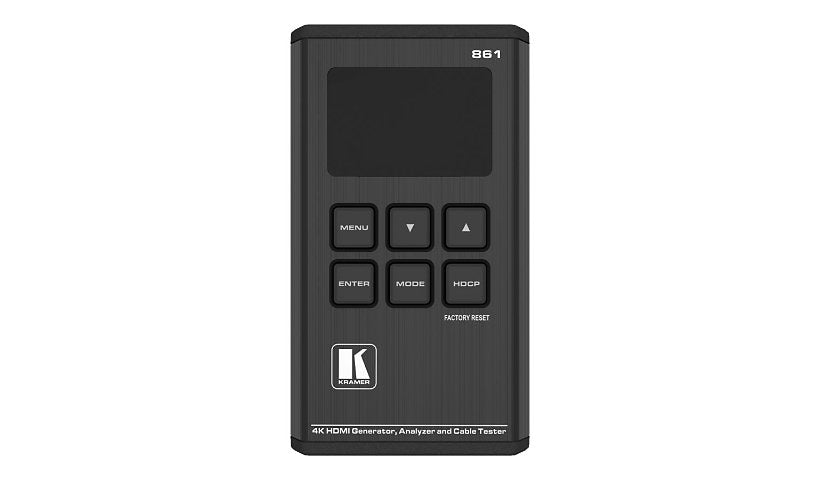

The Kramer 861 is a pocket size 18G 4K HDR signal generator and analyzer for checking the signal path in HDMI 2.0 and HDCP 2.2 systems, an AV tool rather than a network tester. It offers 11 test patterns, 23 built-in resolutions and many analysis tools covering EDID, HDCP and HDMI data packets, EDID upload and emulation and LPCM sine wave audio. It supports 4K60 4:4:4 at 18 Gbps and HDR bypass. It has HDMI input and output, micro-USB for firmware updates, an OLED display and a lithium ion battery.
Key Features
- HDMI signal generator
- 4K60 HDR, 18 Gbps
- 23 resolutions, 11 patterns
- EDID and HDCP analysis
- HDMI in and out
- Battery powered
Product Information
Brand: Kramer
Manufacturer: Kramer Electronic
Product Line: Kramer
Model: 861
Product Type: AV test signal generator / analyzer
Network and Communication
Features: 4K60 4:4:4 18Gbps signal support, EDID support, HDCP 2.2 compliant, HDR (High Dynamic Range) support
Connectivity
Terminals: (1) x HDMI input - 19 pin HDMI Type A, (1) x HDMI output - 19 pin HDMI Type A, (1) x USB - Micro-USB Type B
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Dimensions and Weight
Height: 5.5 inch
Width: 3.1 inch
Depth: 1.1 inch
Weight: 10.58 ounce
