Product Information

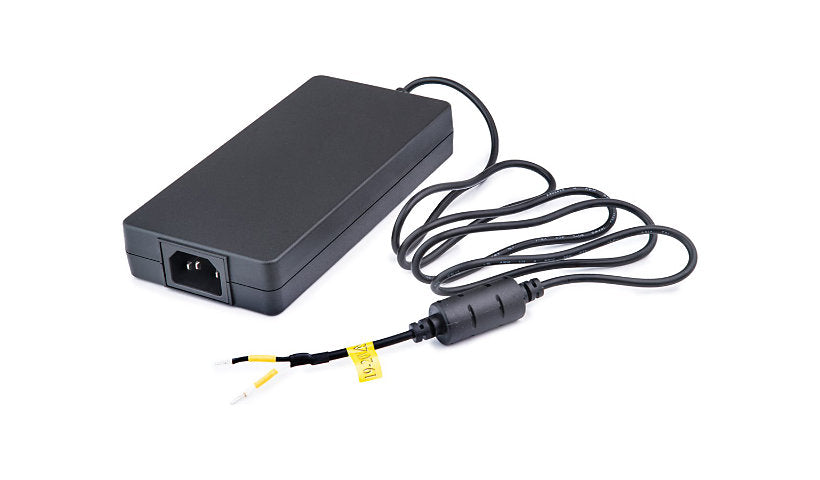

The Kramer PS-2006-O is an external 120 W power adapter that delivers 20 V DC at 6 A through a 2-pin open end output for direct wiring. It accepts 100 to 240 V AC through an IEC C14 inlet, and the DC output cable is integrated.
Key Features
- 120 W output, 20 V DC at 6 A
- 2-pin open end output for wiring
- AC 100 to 240 V input
- IEC 60320 C14 power inlet
- Integrated DC output cable
- External power adapter
Product Information
Brand: Kramer
Manufacturer: Kramer Electronic
Product Line: Kramer
Product Type: Power Adapter
Subcategory: Power adapters
Packaged Quantity: 1
Color Category: Black
Power
Required Voltage: AC 100-240 volt
Input Connector Type: Power IEC 60320 C14
Power Output Connectors Details: 2-pin open end
Power Provided: 120 watt
Form Factor (Power Device): External
Input Connectors: 1
Output Connector Type: 2-pin open end
Max Input Current: 6.3 ampere
Provided Voltage: DC 20 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 80% RH (non-condensing)
Dimensions and Weight
Height: 1.3 inch
Width: 3.8 inch
Depth: 2.1 inch
Weight: 14.11 ounce
Included Items
Cables: DC output cable - integrated, Power cable (C14)
Certifications and Listing
Compliant Standards: Directive 2002/96/EC, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
