Product Information

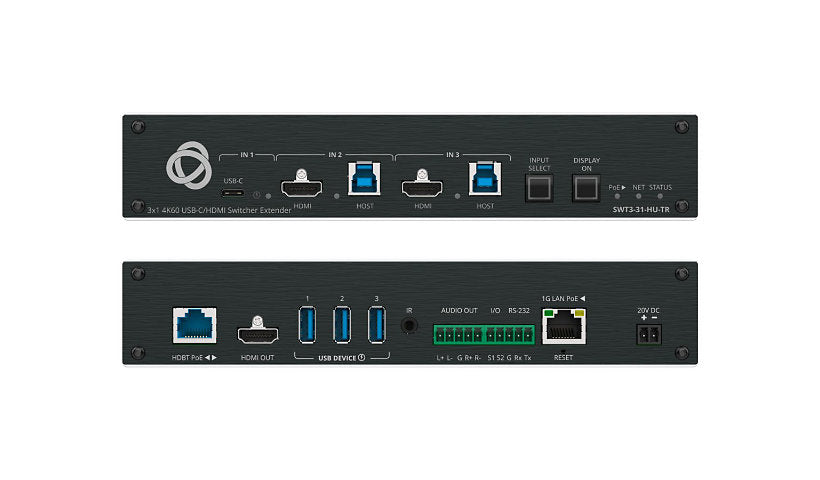

The Kramer SWT3-31-HU-TR is a versatile 3x1 video, audio and USB switch with one USB-C input and two HDMI inputs, supporting resolutions up to 4K at 60Hz. It offers auto-switching, a built-in intelligent control gateway, DisplayPort Alt Mode over USB-C, HDR, 4:4:4 color, deep color, 3D and Dolby TrueHD and DTS-HD audio with audio de-embedding. Kramer I-EDIDPro intelligent EDID processing ensures compatibility, and optical transmission reaches up to 330 ft (100 m). It has an aluminum housing, operates from 0°C to 40°C, and meets UL, RoHS and WEEE standards.
Key Features
- 3x1 switch: 1 USB-C + 2 HDMI inputs
- 4K at 60Hz, HDR, 4:4:4
- Auto-switching, control gateway
- USB-C DP Alt Mode
- I-EDIDPro EDID processing
Product Information
Brand: Kramer
Manufacturer: Kramer Electronic
Product Line: Kramer
Model: SWT3-31-HU-TR
Product Type: Video/audio/USB switch
Technical Information
Features: 3D support, 4:4:4 chroma subsampling support, Aluminum housing, Audio de-embedding, Auto-switching, Built-in intelligent control gateway, Deep Color support, DisplayPort Alternate mode, Dolby TrueHD support, DTS-HD support, HDR support, I-EDIDPro Kramer Intelligent EDID Processing, Video mirror mode, x.v.Color support
Dimensions and Weight
Color: Black
Included Item
Packaged Quantity: 1
Additional Information
Form Factor (Hubs & Switches): Desktop
Max Transfer Distance (Optical): 330 ft
Ports: 3
Status Indicators: Network, PoE, Status
Subcategory: Peripheral sharing and hubs
Switching Type: HDMI / USB
Interface Provided: 1 x 10/100/1000 Base-T (PoE) RJ-45, 1 x audio output 5 pin terminal block stereo audio, 1 x HDBaseT input/output RJ-45, 1 x HDMI output, 1 x IrDA phone stereo 3.5 mm, 1 x serial (RS-232) 3 pin terminal block, 1 x USB input Type C, 2 x GPIO 2 pin terminal block, 2 x HDMI input, 2 x USB 3.2 Type A, 2 x USB 3.2 Type B host
Port Quantity: 1
Port Type: USB-C
Ports Type (2nd): HDMI
KVP Max Resolution: 4K
Output Current: 6 ampere
Provided Voltage: DC 20 volt
KVM V-Sync Rate At Max Resolution: 60 Hz
Max Operating Temperature: 104 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Device Type: External power adapter
Performance: Bandwidth per channel: 6 Gbps, Video bandwidth: 18 Gbps
Ports (2nd) Quantity: 2
Cables: 1 x USB-C cable - 3.3 ft
Included Accessories: 4 rubber feet
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 2.3, USB 1.1, USB 2.0, USB 3.2 Gen 2
