Product Information

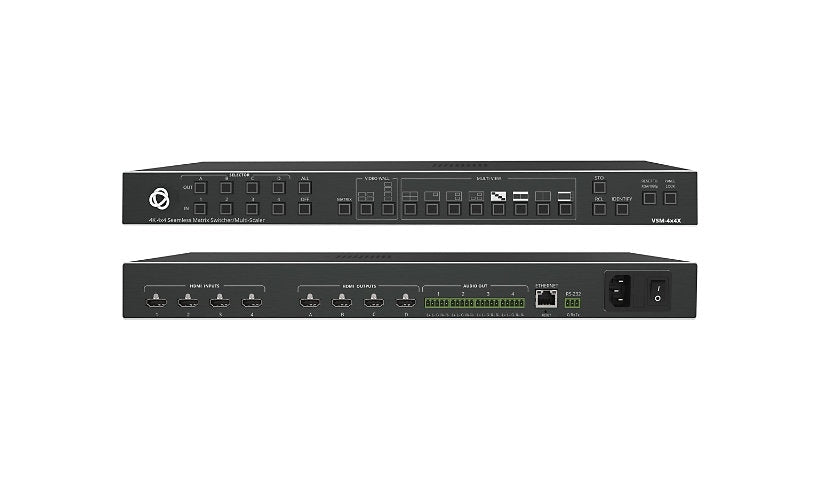

The Kramer VSM-4x4X is a versatile 4x4 matrix switcher and video wall processor for professional AV, with 4K60 4:4:4 signal processing for high-resolution video. It is HDCP 1.4 compliant and offers a built-in ProcAmp and picture-in-picture support for advanced control. A robust aluminum enclosure with fan cooling ensures dependable performance, and the 1U rack-mount design integrates easily into studios and production facilities. Rack ears and rubber feet are included.
Key Features
- 4x4 matrix switcher / video wall processor
- 4K60 4:4:4
- Built-in ProcAmp, PIP
- HDCP 1.4
- 1U rack-mountable, aluminum
Product Information
Brand: Kramer
Manufacturer: Kramer Electronic
Product Line: Kramer
Model: VSM-4x4X
Manufacturer Part Number: VSM-4X4X
Product Type: 4x4 switcher / video-wall processor
Technical Information
Features: 1U rack-mountable, 4K60 4:4:4 signal support, Aluminum enclosure, Built-in ProcAmp, Fan cooling, HDCP 1.4 compliant, Picture-in-picture support
Dimensions and Weight
Width: 17.2 inch
Height: 1.7 inch
Depth: 7.2 inch
Weight: 4.19 lbs
Additional Information
Power Supplies Installed: 1
Required Voltage: AC 100-240 volt
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Kit Content: (1) x 4x4 matrix switcher, (2) x rack mount ears, (4) x rubber foot
Terminals: (1) x network - RJ-45, (1) x RS-232 - 3-pin terminal block, (4) x balanced audio input - 5-pin terminal block, (4) x HDMI input - 19 pin HDMI Type A, (4) x HDMI output - 19 pin HDMI Type A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Manufacturer Limited Warranty: 7 years
