Product Information

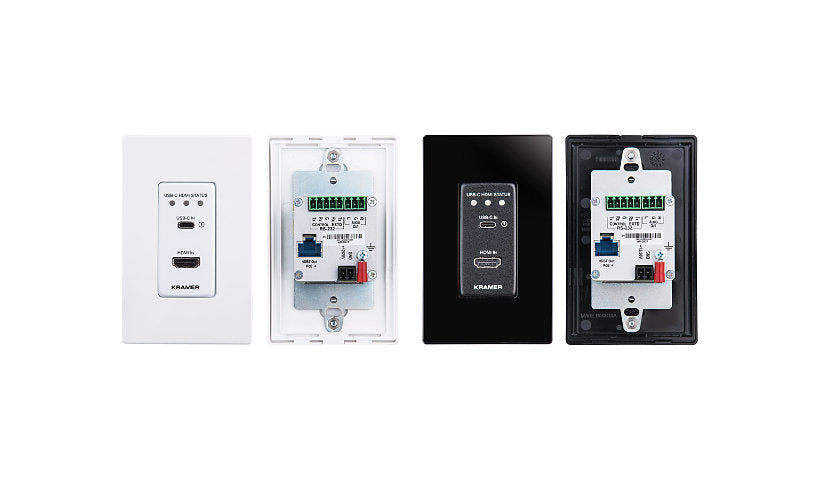

The Kramer WP-20CT is an intelligent 2x1 automatic wall-plate switcher and long-reach HDBaseT transmitter for 4K USB-C and HDMI video. It offers built-in Maestro room control along with priority and last-connected switching based on active video signal detection. It fits a 1-gang box and includes black and white faceplates.
Key Features
- 2x1 auto-switching wall plate transmitter
- USB-C + HDMI inputs, 4K
- Long-reach HDBaseT
- Maestro room control
- 1-gang, D size
Product Information
Brand: Kramer
Manufacturer: Kramer Electronic
Product Line: Kramer
Model: WP-20CT
Manufacturer Part Number: WP-20CT/US-D(W/B)
Product Type: Wall plate panel set
Category: Patch panels, outlets and components
Connectivity
Connectors Provided: 1 x 19 pin HDMI Type A female, 1 x 24 pin USB-C female
Technical Information
Features: 10.2 Gbps HDMI bandwidth, 4K Ultra HD, 60 Hz operation, D size, LED status indicators
Dimensions and Weight
Width: 2.7 inch
Height: 4.5 inch
Depth: 1.2 inch
Weight: 3.53 ounce
Material: Aluminum
Color: Black, White
Included Item
Packaged Quantity: 1
Additional Information
Ports: 2 ports
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Intended For: 3 pin terminal block at backside, PoE support, RJ-45 socket at backside
Wall Outlet Connectors: HDMI, USB Type C
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Certifications and Listing
Compliant Standards: HDCP 1.4, HDCP 2.3, RoHS, WEEE
