Product Information

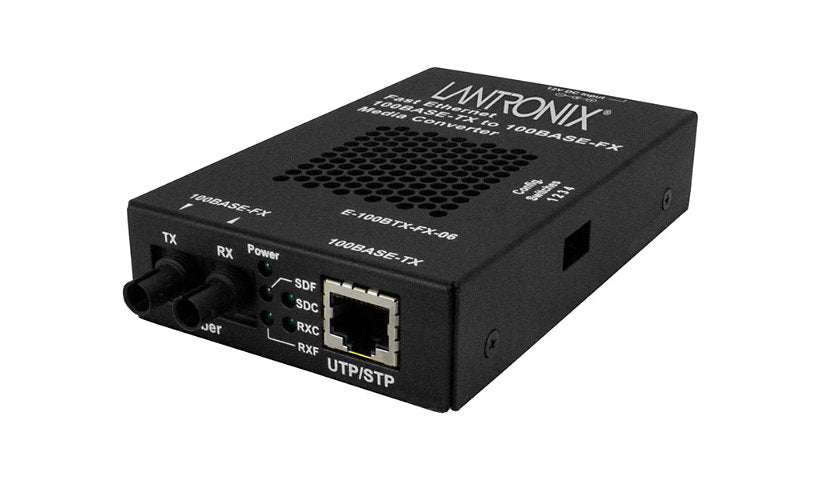

This Lantronix converter links 100Base-TX copper to 100Base-FX multimode fiber with ST connectors at 1300 nm, reaching up to 2 km. It runs from 0 to 50°C at 100 Mbps and offers auto-negotiation, Automatic Link Restoration, Far End Fault and Active Link Pass Through. It meets FCC Class A and is TAA compliant.
Specifications:
Brand: Lantronix
Manufacturer part number: E-100BTX-FX-06-NA
Product line: Lantronix E-100BTX Series
Cable type: Fiber media converter
Data rate: 100 MBps
Features: 11 dB link budget, Active Link Pass Through function (ALPT), Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Automatic Link Restoration, Far End Fault (FEF), Pause mode
Height: 1 inch
Width: 3 inch
Weight: 31.74 ounce
Color: Black
Operating temperature: 32°F to 122°F
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: EN 55022 Class A, EN 61000, EN55024, FCC Class A certified, NDAA, IEEE 802.3
Warranty: Limited Lifetime
Wavelength: 1300 nm
Reach: up to 2 km
