Product Information

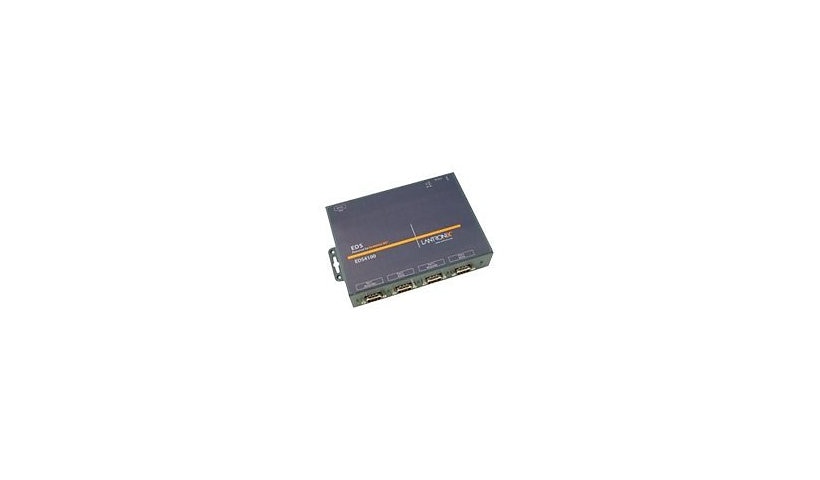

The Lantronix EDS4100 (ED41000P2-01) is a 4 port device server running Evolution OS that turns serial equipment into secure network members for remote access. It has two RS-232 DB-9 ports, two RS-232/422/485 DB-9 ports and a 10/100 RJ-45 with PoE. This version ships with a universal power supply and regional adapters per the quick specs. It uses a 266 MHz processor with 32 MB SDRAM and 8 MB flash, supports SSH v2, SSL 3.0, AES and 3DES, and is managed by web, Telnet and SNMP v2.
Key Features
- 4 serial ports, DB-9
- 2 x RS-232, 2 x RS-232/422/485
- PoE plus power supply
- Regional plug adapters
- SSH v2, AES, SSL
- Evolution OS
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix Device Server EDS4100
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Communication Mode: Full-duplex, Half-duplex
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP 2, Telnet
Authentication Method: Secure Shell v.2 (SSH2)
Encryption: AES, ARCFOUR, SSL 3.0, Triple DES
Operating System Required: Microsoft Windows 98/ME/NT/2000/XP
Features: 128-bit encryption, ARP support, BOOTP support, DHCP support
Software Type: Drivers & Utilities
Connectivity
Ports: 4
Interface Provided: 1 x 100Base-TX - RJ-45, 2 x RS-232 - DB-9, 2 x RS-232/422/485 - DB-9
Power Over Ethernet (PoE): PoE
Power
Device Type: Internal power supply
Memory and Processor
Processors Installed: 1
Clock Speed: 266 megahertz
RAM Installed: 32 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 8 megabyte
Total Processor Supported: 1
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 90%
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power, Test mode
Dimensions and Weight
Height: 5 inch
Width: 7 inch
Depth: 1.5 inch
Weight: 1.98 lbs
Certifications and Listing
Compliant Standards #2: C-Tick, CISPR 22, cUL, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15, ICES-003 Class A, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, TUV GS, UL, VCCI
Compliant Standards: IEEE 802.3af
Compliant Standards: C-Tick, CISPR 22, cUL, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15, ICES-003 Class A, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, TUV GS, UL, VCCI
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
