Product Information

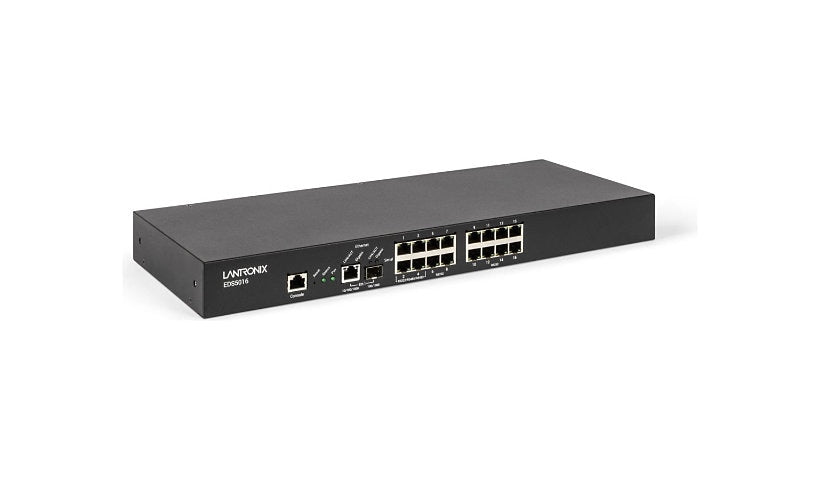

The Lantronix EDS5016 is a 16 port EDS5000 series cloud managed device server with twelve RS-232 RJ-45 ports, four RS-232/422/485 RJ-45 ports, one gigabit RJ-45/SFP combo and an RJ-45 console. It supports IPv4 and IPv6, flow control, IP filtering and SSL, with TLS 1.3, AES-256, RSA up to 4096-bit and SSH, managed by web, SNMP v1 to v3, SSH, Telnet and syslog. It has redundant AC power drawing about 20 W, a 1U desktop or rack design and a NuMicro MA35DA processor. The spec lists 512 MB flash while the description gives 256 MB flash and 512 MB memory.
Key Features
- 16 serial ports, RJ-45
- 12 RS-232, 4 RS-232/422/485
- GbE RJ-45/SFP combo
- TLS 1.3, AES-256, SSH
- Redundant AC power
- 1U desk or rack
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix EDS5000 Series
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Network Standard: ARP, BOOTP, DHCP, DNS, FTP, HTTP, HTTPs, IPv4, IPv6, TCP/IP, Telnet, TFTP, UDP/IP
Remote Management: DHCP, DNS, HTTP, HTTPS, ICMP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Authentication Method: Secure Shell (SSH)
Encryption: 1024-bit RSA, 128-bit AES, 2048-bit RSA, 256-bit AES, 4096-bit RSA, DSA, ECDHE, MD5, SHA-1, SHA-2, SSL 3.0, TLS 1.2, TLS 1.3
Features: Clear to Send (CTS) support, Firmware upgradable, Flow control, IP address filtering, Password protection, Receive Side Scaling (RSS), Request to Send (RTS) support, Reset button, SSL traffic encryption
Connectivity
Ports: 16
Interface Provided: 1 x console - RJ-45, 1 x Ethernet 1000 - RJ-45/SFP, 12 x RS-232 - RJ-45, 4 x RS-232/422/485 - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 20 watt
Redundant Power Supply: Yes
Memory and Processor
Processor Brand: NuMicro
Processor Type: MA35DA
Flash Memory Installed: 512 megabyte
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor: Desktop / rack mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power, Status
Built-in Devices: 256 MB flash
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 6.9 inch
Weight: 10.01 lbs
Certifications and Listing
Compliant Standards: CB 62368, FCC, IC, IP30, NDAA, UKCA, UL 62368
