Product Information

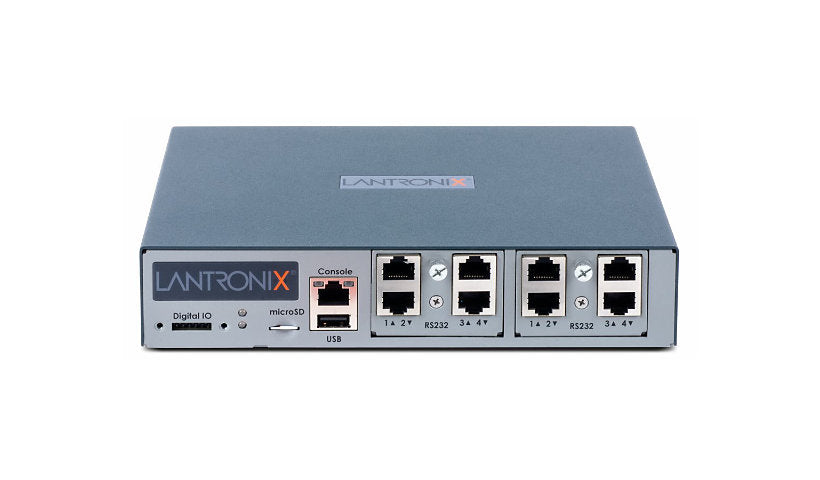

The Lantronix EMG8500 is a 1U edge management gateway for secure console access to IT equipment, with eight RS-232 RJ-45 ports, USB and RS-232 management ports and dual Gigabit Ethernet. It provides out of band access over LTE, with SSH, Telnet and web console access. It carries a 3 year limited warranty.
Key Features
- 8 x RS-232 RJ-45 console ports
- 2 x Gigabit Ethernet
- LTE out of band access
- SSH, Telnet, web console, RADIUS
- 1 GB RAM, 1 GB flash, microSD
- 1U, 3 year limited warranty
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix Edge Management Gateway
Model: EMG8500
Product Type: Security appliance
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: TCP/IP, UDP/IP
Remote Management: CLI, DHCP, HTTP, SFTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Routing Protocol: RIP, RIP-2
Authentication Method: CHAP, PAP, RADIUS
Cellular Data Connectivity Technology: LTE
Features: BOOTP support, Cisco IOS IP Service-Level Agreements (IPSLA), E-mail notification, Firewall protection, IPv6 support, LDAP support, Lights Out Management (LOM), Network Timing Protocol (NTP), Packet filtering, Point-to-Point Protocol (PPP), RADIUS support, SNMP support, Syslog support, Trivial File Transfer Protocol (TFTP) support, VPN support
Connectivity
Interface Provided: 1 x management (RS-232) - RJ-45, 1 x management (USB) - Type A, 2 x Ethernet 1000, 8 x RS-232 - RJ-45
Memory and Processor
RAM Installed: 1 GB
Flash Memory Installed: 1 GB
Flash Memory Cards Supported: microSD, microSDHC
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 30 - 90% (non-condensing)
Physical Characteristics
Form Factor: External
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 6.6 inch
Depth: 8.4 inch
Certifications and Listing
Compliant Standards: CB, FCC, IC, TLS v1.0, TLS v1.1, TLS v1.2, UL
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
