Product Information

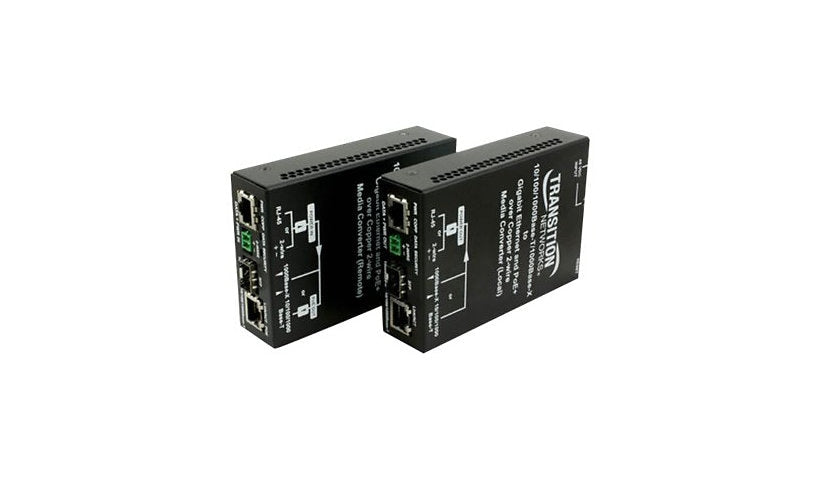

Lantronix's EO2PD4052-111 is an EO2Px series media converter with one SFP slot, one Gigabit RJ-45 and one Gigabit RJ-45 with PoE+ output. It offers auto power reset, power failure monitoring, DHCP/DNS/NTP clients and upgradable firmware. It is IP30 and TAA compliant. This is a media converter, not a standalone injector.
Key Features
- 1 x 1000Base-X SFP slot
- 1 x Gigabit RJ-45
- 1 x Gigabit RJ-45 PoE+ output
- Auto power reset, power fail monitoring
- IP30, TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix EO2Px Series
Product Type: Fiber media converter
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 1000Base-X, Ethernet 100Base-TX, Ethernet 100Base-X, Ethernet 10Base-T
Remote Management: DHCP, DNS, IPv4, IPv6, NTP
Encryption: 128-bit AES
Max Transfer Distance: 1800 ft
Features: Auto Power Reset (APR), Auto-uplink (auto MDI/MDI-X), DHCP client, DNS client, Firmware upgradable, NTP client, Power failure monitoring
Connectivity
Interface Provided: 1 x Ethernet 1000Base-X - SFP female, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female
Power Over Ethernet (PoE): PoE+
Left Connector SD Type: RJ-45
Right Connector Type (SD): SFP (mini-GBIC)
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: >200,000 Hours
Physical Characteristics
Form Factor: External
Mounting Kit: Optional
Status Indicators: Link/activity, PoE, Power, Secure
Dimensions and Weight
Height: 1.2 inch
Width: 3.2 inch
Depth: 5.4 inch
Weight: 16.93 ounce
Certifications and Listing
Compliant Standards: CISPR 22, EN55022, EN55024, FCC Part 15, IP30, NDAA, Plug and Play
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
Not sure this fits your setup? Send us the model of the device you need to power or connect and the DatorPro team will confirm compatibility before you order.
