Product Information

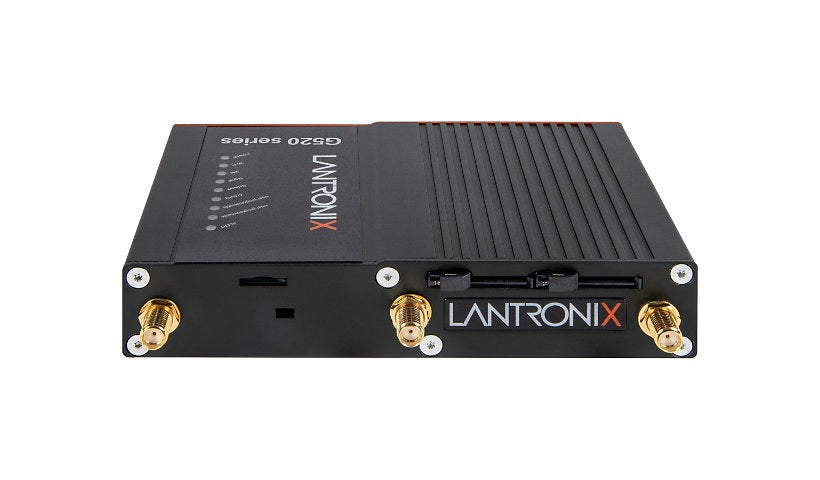

The Lantronix G527 from the G520 series is an industrial LTE router with dual band Wi-Fi 5, Bluetooth 5.1 and a two port Ethernet switch with PoE+. It accepts 10.8 to 60 V DC, has two Mini SIM slots, a microSD reader, GNSS and an accelerometer, and is listed as TAA compliant in the title and quick specs.
Key Features
- LTE Cat 7 / Cat 13 listed, 2 x Mini SIM
- Wi-Fi 5 dual band, Bluetooth 5.1
- 2 port Ethernet switch, PoE+
- OpenVPN, IPsec, GRE, failover, load balancing
- 10.8 to 60 V DC, aluminum housing, DIN rail mount
- GNSS, accelerometer, microSD, TAA per title
Product Information
Product Type #2: Wireless cellular modem
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix G520 Series
Model: G527
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black, Orange
Country: Americas
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 5.1, Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DHCP, HTTPs, ICMP/IP, IPSec, L2TP, PPTP
Remote Management: HTTPS, NTP, TR-069
Routing Protocol: GRE, Static IP routing
Authentication Method: MS-CHAP v.2
Encryption: EAP-FAST, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WEP, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Modem Transmission Data Rate: 300 MBps
Capacity: IPSec tunnels: 4
Integrated Switch: 2-port switch
Wireless LAN: 802.11a/b/g/n/ac, Bluetooth 5.1
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: FDD LTE, LTE, TDD LTE
IoT Communications Technology: LTE Cat 13, LTE Cat 7
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2T2R MIMO technology, 2x2 MIMO technology, Access Point operational mode, Aluminum housing, DIN rail mountable, DMZ support, DNS proxy, DynDNS, Failover protection, Firewall protection, Firmware Over-the-Air (FOTA), Hardware watchdog, Load balancing, NAT support, OpenVPN client, OpenVPN pass-through, OpenVPN server, PIN code authentication, PoE+, Port forwarding, PPTP client, Reset button, Spanning Tree Protocol (STP) support, VLAN support
Connectivity
Expansion Slots: 1 (total) / 1 (free) x microSD, 2 (total) / 2 (free) x Mini-SIM
WAN Ports Quantity: 1
Power
Required Voltage: DC 10.8 - 60 volt
Memory and Processor
Processor Number: ARM926EJ-S
Processors Installed: 1
Clock Speed: 600 megahertz
RAM Installed: 256 megabyte
Memory Technology: DDR2 SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Network, Power, Signal, SIM status
Built-in Devices: Accelerometer, GNSS receiver, microSD card reader
Dimensions and Weight
Height: 1 inch
Width: 5.2 inch
Depth: 3.2 inch
Weight: 10.58 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Warranty
Service Activation: No
