Product Information

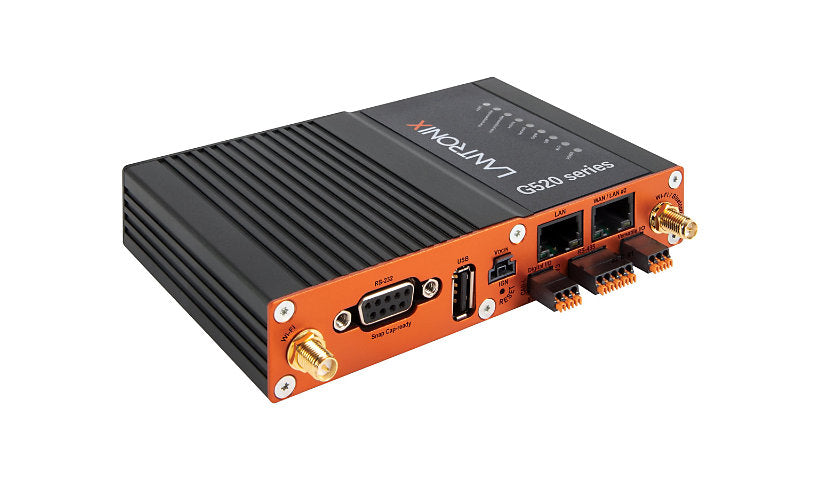

The Lantronix G528 from the G520 series is an industrial 5G and LTE router with dual band Wi-Fi 5, Bluetooth 5.1 and two PoE+ Fast Ethernet ports. It adds RS-232 and RS-485 serial, digital I/O, USB, microSD, GNSS and an accelerometer, takes 10.8 to 60 V DC, and comes with ConsoleFlow management.
Key Features
- 5G NR and LTE Cat 20 / Cat 13, 2 x Mini SIM
- Wi-Fi 5 dual band, Bluetooth 5.1
- 2 x 10/100 PoE+ RJ-45
- RS-232, RS-485, 2 x I/O, USB 2.0
- GNSS, accelerometer, microSD
- 10.8 to 60 V DC, DIN rail, aluminum
Product Information
Product Type #2: Wireless cellular modem
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix G520 Series
Model: G528
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black, Orange
Country: Worldwide
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 5.1, Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DHCP, HTTPs, ICMP/IP, IPSec, L2TP, PPTP
Remote Management: HTTPS, NTP, TR-069
Routing Protocol: GRE, Static IP routing
Authentication Method: MS-CHAP v.2
Encryption: EAP-FAST, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WEP, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
Capacity: IPSec tunnels: 4
Integrated Switch: 2-port switch
Wireless LAN: 802.11a/b/g/n/ac, Bluetooth 5.1
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G NR, LTE
IoT Communications Technology: LTE Cat 13, LTE Cat 20
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2T2R MIMO technology, 2x2 MIMO technology, Access Point operational mode, Aluminum housing, DIN rail mountable, DMZ support, DNS proxy, DynDNS, Failover protection, Firewall protection, Firmware Over-the-Air (FOTA), Hardware watchdog, Load balancing, NAT support, OpenVPN client, OpenVPN pass-through, OpenVPN server, PIN code authentication, PoE+, Port forwarding, PPTP client, Reset button, Spanning Tree Protocol (STP) support, VLAN support
Connectivity
Interface Provided: 2 x input / output - 3 pin COMBICON, Antenna: 5 x RP-SMA, LAN: 1 x 10Base-T/100Base-TX (PoE+) - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), Serial: 1 x RS-485 - 5 pin COMBICON, USB 2.0: 1 x 4 pin USB Type A, WAN / LAN: 1 x 10Base-T/100Base-TX (PoE+) - RJ-45
Expansion Slots: 1 (total) / 1 (free) x microSD, 2 (total) / 2 (free) x Mini-SIM
WAN Ports Quantity: 1
Power
Required Voltage: DC 10.8 - 60 volt
Memory and Processor
Processor Number: ARM926EJ-S
Processors Installed: 1
Clock Speed: 600 megahertz
RAM Installed: 256 megabyte
Memory Technology: DDR2 SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Network, Power, Signal, SIM status
Built-in Devices: Accelerometer, GNSS receiver, microSD card reader
Dimensions and Weight
Height: 1 inch
Width: 5.2 inch
Depth: 3.2 inch
Weight: 10.58 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Warranty
Service Activation: No
