Product Information

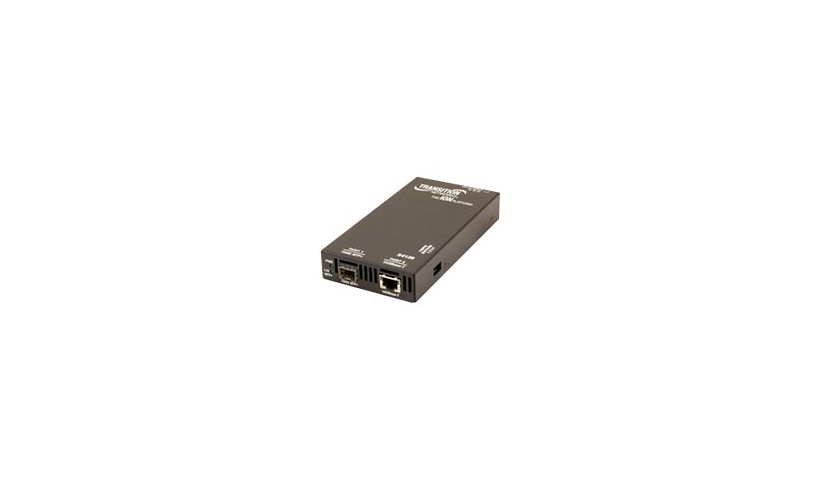

The Lantronix ION S4120 (S4120-1048-NA) is a standalone media converter, not a network adapter. It links a 10GBase-T RJ-45 copper port to a 10G SFP+ slot, so copper and fiber segments can be joined using SR, LRM, LR, ER or ZR optics. It is manageable and firmware upgradable, with auto-negotiation, auto MDI/MDI-X, link pass through, loopback and a DIP switch for setup. It runs from an external power adapter at about 10.5 W, operates from 0 to 50 °C, and is TAA and NDAA compliant.
Key Features
- Media converter, not an adapter
- 10GBase-T RJ-45 to SFP+
- Works with SR to ZR optics
- Manageable, upgradable
- External power, about 10.5 W
- TAA and NDAA compliant
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix ION S4120 Series
Product Type: Fiber media converter
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet
Cable Type: Ethernet 10GBase-ER, Ethernet 10GBase-LR, Ethernet 10GBase-LRM, Ethernet 10GBase-SR, Ethernet 10GBase-T, Ethernet 10GBase-X, Ethernet 10GBase-ZR
Data Transfer Rate: 10 GBps
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Automatic Link Restoration, Built-in DIP switch, Firmware upgradable, Link Pass-Through, Loopback, Manageable, Wavelength Division Multiplexing (WDM)
Connectivity
Interface Provided: 1 x Ethernet 10GBase-T - RJ-45 female, 1 x Ethernet 10GBase-X - SFP+
Left Connector SD Type: RJ-45
Right Connector Type (SD): SFP+
Power
Device Type: External power adapter
Power Consumption Operational: 10.5 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1 inch
Width: 3.2 inch
Depth: 6.5 inch
Weight: 31.74 ounce
Certifications and Listing
Compliant Standards #2: IEEE 802.3, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az
Compliant Standards: EN 55022 Class A, EN55024, FCC Class A certified, NDAA
Compliant Standards: IEEE 802.3, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
