Product Information

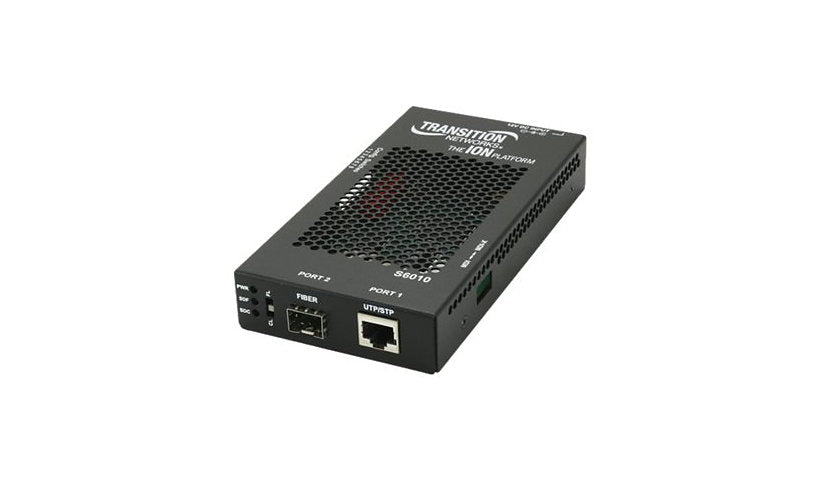

The Lantronix ION S6010 converter carries T1 or E1 (switch selectable) over fiber with a total rate of 2.048 Mbps. It runs from -10 to 65°C at up to 95% non-condensing humidity, has an RJ-48 copper port and an SC multimode fiber port at 1300 nm reaching up to 2 km, and supports remote SNMP management. It draws 2.6 W from an external AC 100-240 V adapter.
Specifications:
Brand: Lantronix
Manufacturer part number: S6010-1013-NA-PROMOTION
Product line: Lantronix ION S6010 Series
Cable type: Fiber media converter
Features: 12 dB link budget, CWDM, Loopback, Remote access management, Remote firmware upgrade, Switch selectable for T1 or E1
Height: 1 inch
Width: 3.2 inch
Weight: 31.74 ounce
Color: Black
Operating temperature: 14°F to 149°F
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: ANSI T1.102, ANSI T1.402, ANSI T1.408, EN 55032 Class A, EN 55035 Class A, ETSI 300-166, ETSI 300-233, FCC Class A certified, ITU I.431, ITU-T G.703, ITU-T G.736, ITU-T G.775, ITU-T G.823, NDAA, TBR12/12, UKCA, UL
Warranty: Limited Lifetime
Line rate: 2.048 Mbps (T1/E1)
Reach: up to 2 km
Power: 2.6 W
