Product Information

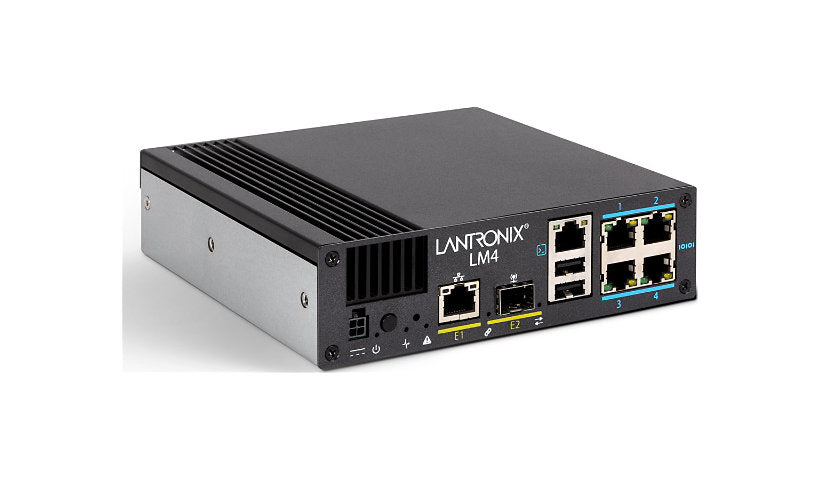

The Lantronix LM4 (LM4-4S-NA) is a 4 port console server for IDFs and small sites that also acts as a network automation platform, polling devices over the console port every 30 seconds by default. It has four RS-232 ports, two gigabit RJ-45, one gigabit SFP, two USB-A and an RS-232 management port, running LMOS with up to 48 virtual ports and port forwarding. It supports 256-bit AES, SSH v2, RADIUS and TACACS, draws about 24 W from an external 100 to 240 V AC supply, and comes with rack ears, screws, the power supply and a 6.6 ft RJ-45 cable. TAA compliant.
Key Features
- 4 RS-232 serial ports
- 2 x GbE plus SFP
- LMOS, 48 virtual ports
- AES-256, SSH v2
- Rack ears included
- TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix LM Series
Model: LM4
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Country: North America
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DHCP, DNS
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS
Encryption: 256-bit AES
Capacity: Virtual portals: 48
Operating System Edition: LMOS
Connectivity
Ports: 4
Interface Provided: 1 x Ethernet 1000 - SFP, 1 x management (RS-232), 2 x Ethernet 1000 - RJ-45, 2 x USB - Type A, 4 x RS-232
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Consumption Operational: 24 watt
Memory and Processor
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 6.2 inch
Depth: 6.2 inch
Weight: 3.13 lbs
Included Items
Included Accessories: 2 screws, Power cable, Power supply, Rack mounting ears
Cables: 1 x RJ-45 cable - 6.6 ft
