Product Information

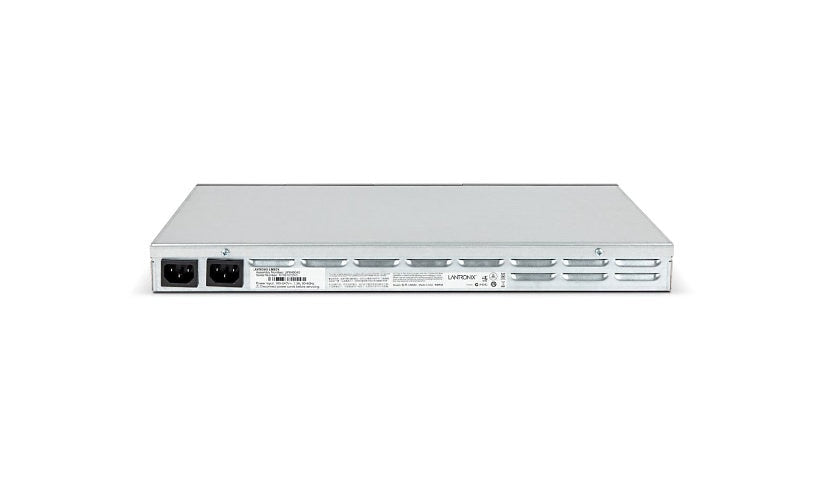

Lantronix's LM83X (83X-8S-E00-NAA) is a 1U console server with eight RS-232 serial ports, eight dedicated Ethernet ports, an SFP port and two Gigabit management ports. It supports zero touch deployment, failover and VPN, has dual power supplies and includes LMS. It is TAA compliant. This is a console server, not a switch.
Key Features
- 8 x RS-232 serial ports
- 8 x dedicated Ethernet ports
- 1 x SFP + 2 x Gigabit management ports
- Zero touch deployment, failover, VPN
- 2 power supplies installed
- 1U rack mount, TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix LM Series
Model: LM83X
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DHCP, DNS, NTP
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS
Features: Failover support, IP address filtering, Manageable, Scalable, VPN support, Zero-Touch Deployment
Connectivity
Interface Provided: 1 x 1000Base-X - SFP, 1 x console - RJ-45, 1 x USB - Type A, 1 x USB - Type C, 2 x 1000Base-T (management) - RJ-45, 8 x Ethernet - RJ-45, 8 x RS-232 - RJ-45
Expansion Slots: 3 expansion slot
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 60 watt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Memory and Processor
Hard Drive Capacity: 256 GB
Port Expansion Hard Drive Type: SSD
Drive Interface: PCI Express (NVMe)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 10.4 inch
Weight: 8.2 lbs
Included Items
Included Accessories: 2 rack mounting ears, 4 x screws
Cables: 1 x USB-C to USB-A cable
Certifications and Listing
Compliant Standards: FCC Part 15 B Class A, NDAA, OPAL 2.0, RoHS, TUV
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Service Activation: No
