Product Information

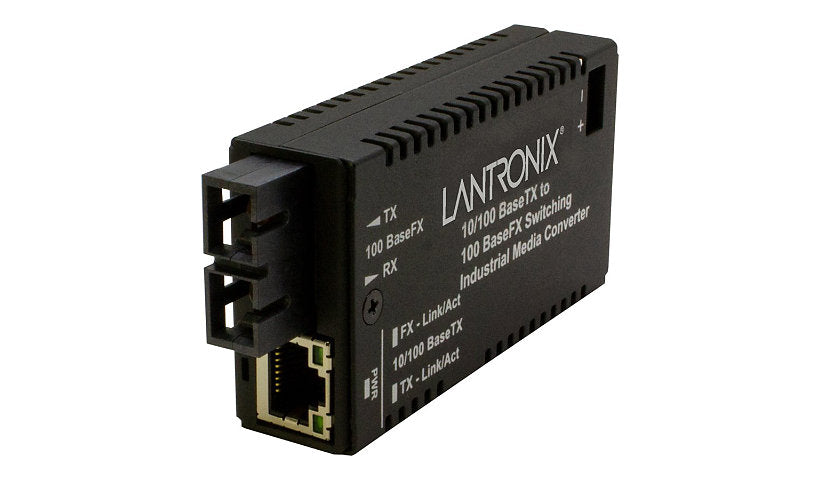

This Lantronix mini converter links 10/100Base-TX copper to 100Base-FX singlemode fiber with SC connectors at 1310 nm, reaching up to 20 km. It runs from -40 to 75°C at 5 to 95% humidity, mounts on a DIN rail and has overload and reverse polarity protection, with power and link/activity LEDs for easy monitoring.
Specifications:
Brand: Lantronix
Manufacturer part number: M/E-ISW-FX-02(SM)
Product line: Lantronix M/E-ISW-02 Series
Cable type: Fiber media converter
Features: Auto-negotiation, Far End Fault (FEF), Full duplex mode, Hardened, MDI/MDI-X switch, Over-loading protection, Reverse polarity protection
Height: 0.9 inch
Width: 1.8 inch
Weight: 31.74 ounce
Color: Black
Operating temperature: -40°F to 167°F
Quantity in package: 1
Standards and compliance: CISPR 22 Class A, EN 55022 Class A, EN55024, FCC Class A certified, IEEE 802.3
Warranty: Limited Lifetime
