Product Information

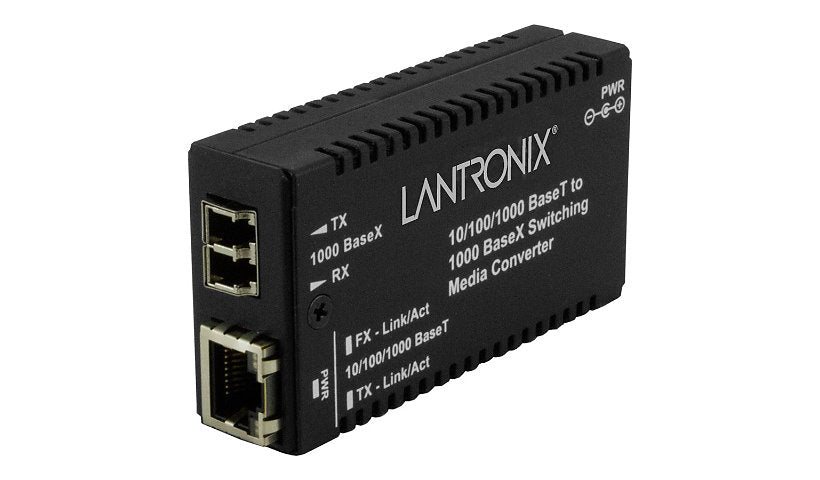

This compact Lantronix converter links 10/100/1000 RJ-45 copper to 1000Base-SX multimode fiber with LC connectors at 850 nm, reaching up to 1800 ft. It runs from 0 to 50°C at 5 to 95% humidity, meets FCC Class A and UL, and supports auto-negotiation and full duplex for fast, stable links.
Specifications:
Brand: Lantronix
Manufacturer part number: M/GE-PSW-SX-01(LC)-NA
Product line: Lantronix M/GE-PSW Series
Cable type: Fiber media converter
Data rate: 1 GBps
Features: 50/125µm core size, 62.5/125µm core size, 7 dB link budget, Active Link Pass Through function (ALPT), Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Automatic Link Restoration, Full duplex mode, Jumbo Frames support (up to 10240 bytes)
Height: 0.9 inch
Width: 1.8 inch
Weight: 31.74 ounce
Color: Black
Operating temperature: 32°F to 122°F
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: CISPR 22 Class A, cUL, EN 55022 Class A, EN55024, FCC Class A certified, NDAA, UL, IEEE 802.3
Warranty: Limited Lifetime
