Product Information

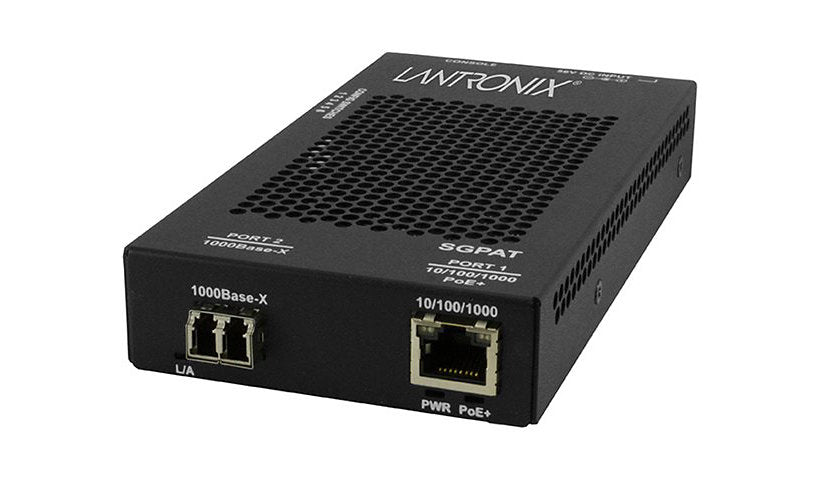

The Lantronix SGPAT converter links 10/100/1000 RJ-45 copper to LC multimode fiber at 850 nm, up to 550 m, and delivers PoE+ up to 30 W. It runs from 0 to 45°C at 5 to 95% humidity, meets EN55024, and has LEDs for power, PoE and link/speed. Auto-negotiation and Remote Fault Detection keep links running smoothly, and it mounts on a DIN rail or wall.
Specifications:
Brand: Lantronix
Manufacturer part number: SGPAT1039-105-NA
Product line: Lantronix SGPAT Series
Cable type: Fiber media converter
Features: 8 dB link budget, Active Link Pass Through function (ALPT), Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Built-in DIP switch, Command-line interface (CLI) management, DIN rail mountable, Jumbo Frames support, PoE Detection, Remote-Fault-Detection (RFD), Wall mountable
Height: 1 inch
Width: 3.2 inch
Weight: 31.74 ounce
Color: Black
Operating temperature: 32°F to 113°F
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: EN 55022 Class A, EN55024, NDAA, IEEE 802.3-2012, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Warranty: Limited Lifetime
Wavelength: 850 nm
Reach: up to 550 m
PoE budget: up to 30 W
