Product Information

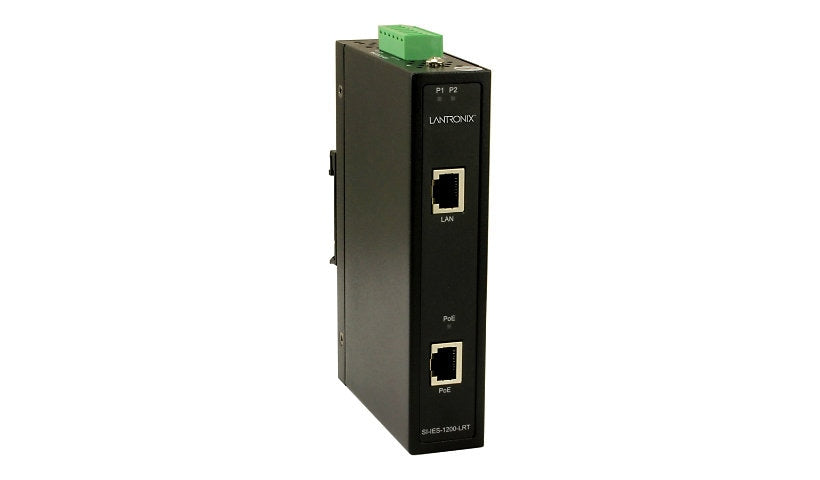

Lantronix's SI-IES-1200-LRT is a hardened DIN rail PoE+ injector that delivers up to 30 W with Gigabit data from a 24 to 48 V DC supply. It operates from -40 to 167 °F, is IP30 rated and is TAA compliant.
Key Features
- 1 x Gigabit PoE+ output, up to 30 W
- 24-48 V DC input
- Operating range -40 to 167 °F
- IP30, DIN rail mount
- NDAA / TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE+
Output Connector Quantity: 1
Power
Required Voltage: DC 24 - 48 volt
Power Device Features: LED indicator
Input Connector Type: Terminal block
Power Output Connectors Details: 1 x RJ-45
Power Consumption Operational: 33.36 watt
Power Provided: 30 watt
Form Factor (Power Device): DIN rail mountable
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Dimensions and Weight
Height: 5.5 inch
Width: 1.2 inch
Depth: 3.7 inch
Weight: 20.81 ounce
Certifications and Listing
Compliant Standards: EN 61000-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, FCC Class A certified, IEC 60068-2-32, IEC 60068-2-6, IP30, NDAA, UL 508
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
ENERGY STAR Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
