Product Information

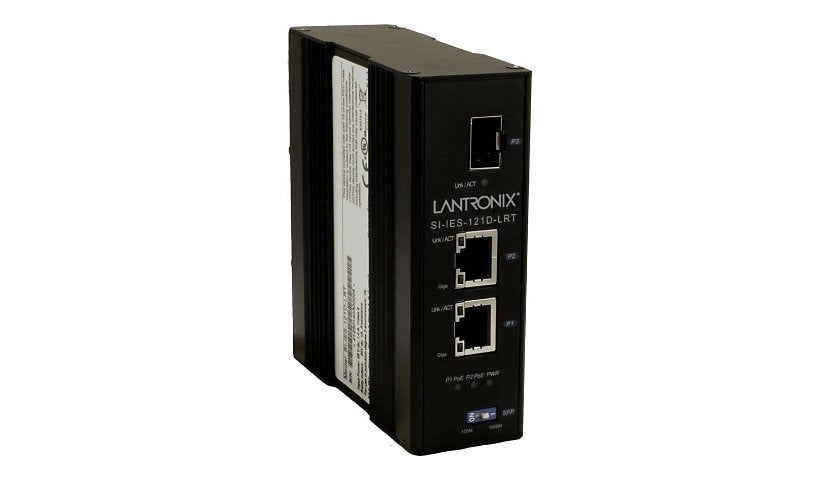

Lantronix's SI-IES-121D-LRT is a hardened unmanaged media converter with one 100/1000 SFP slot and two Gigabit RJ-45 ports that each supply PoE+ up to 30 W. It takes 48 to 57 V DC, runs from -40 to 167 °F, supports 10 KB jumbo frames and mounts on a DIN rail. It is TAA compliant. This is a media converter, not a standalone injector.
Key Features
- 1 x 100/1000 SFP slot
- 2 x Gigabit RJ-45 PoE+, 30 W
- 48-57 V DC input
- Operating range -40 to 167 °F
- DIN rail, IP31
- NDAA / TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix
Model: SI-IES-121D-LRT
Product Type: Fiber media converter
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 10/100/1000Base-T, Ethernet 1000Base-X, Ethernet 100Base-X
Data Transfer Rate: 1000 GBps
Features: 10 KB Jumbo Frame, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Full duplex mode, Half duplex mode, Link Pass-Through, Non-blocking architecture, Store-and-forward technology, Unmanaged
Connectivity
Interface Provided: 1 x Ethernet 100Base-X/1000Base-X - SFP, 2 x Ethernet 10/100/1000Base-T - RJ-45 female - 30 W
Power Over Ethernet (PoE): PoE+
Left Connector SD Type: RJ-45
Right Connector Type (SD): SFP (mini-GBIC)
Power
Required Voltage: DC 48 - 57 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Physical Characteristics
Form Factor: DIN Rail Mountable
Mounting Kit: Optional
Status Indicators: Link/activity, Power, Transmit
Dimensions and Weight
Height: 4.3 inch
Width: 1.4 inch
Depth: 3.7 inch
Weight: 20.81 ounce
Certifications and Listing
Compliant Standards: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN55022, EN55024, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP31, NDAA
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
