Product Information

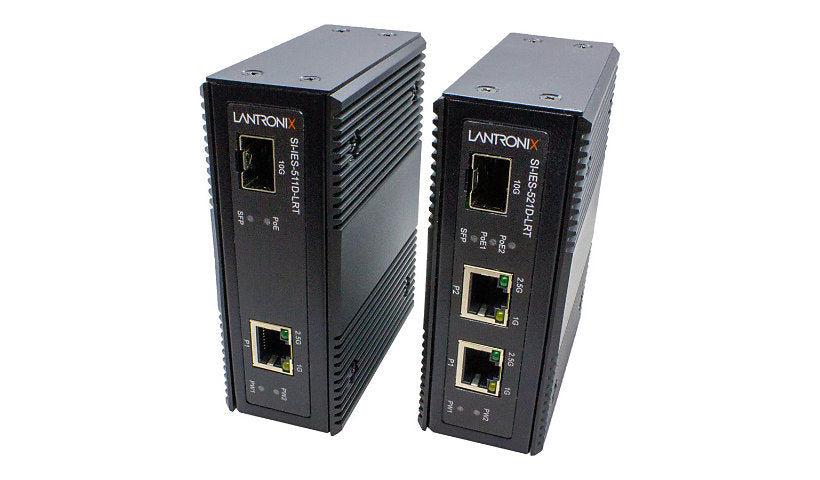

The Lantronix SI-IES-511D-LRT is a hardened multi-gig PoE++ injector that adds up to 90 W on a 2.5G port from a 54 to 56 V DC supply. It runs from -40 to 167 °F, mounts on a DIN rail or wall and supports 10K jumbo frames. It is TAA compliant.
Key Features
- 1 x 1/2.5G PoE++ RJ-45 output
- Up to 90 W
- 54-56 V DC input
- Operating range -40 to 167 °F
- DIN rail, wall mount kit included
- NDAA / TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features: Auto MDI support, Auto MDIX support, Auto-negotiation, Hardened, Supports 10K jumbo frames
Connectivity
Interface Provided: 1 x 1/2.5 Gigabit LAN (PoE++) - RJ-45
Power Over Ethernet (PoE): PoE++
Output Connector Quantity: 1
Power
Required Voltage: 54 - 56 volt
Power Device Features: 2 kV surge protection, DIP switch, LED indicators, Overload protection, Redundant power connector, Remote reset function, Reverse polarity protection
Input Connector Type: 4 pin terminal block
Power Output Connectors Details: 1 x RJ-45
Power Consumption Operational: 220 watt
Power Provided: 90 watt
Form Factor (Power Device): DIN rail mountable
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 526,264 Hours
Dimensions and Weight
Height: 4.1 inch
Width: 1.5 inch
Depth: 3.2 inch
Weight: 11.29 ounce
Included Items
Included Accessories: Wall mounting kit
Certifications and Listing
Compliant Standards: CISPR 32, EN 50058-2-6, EN 55032/35, EN 60068-2-27, EN 60068-2-32, EN62368-1, FCC, FCC Part 15 B Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IP31, NDAA, Telcordia, UKCA, UL 121201, UL 62368-1
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
