Product Information

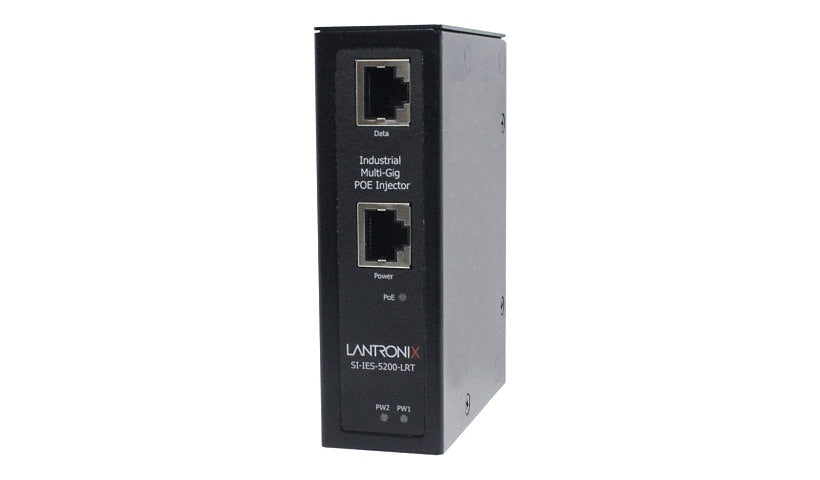

Lantronix's SI-IES-5200-LRT is a hardened multi-gig injector that adds up to 90 W PoE++ on a 10G link from a 54 to 56 V DC supply. It is built for factory floors and outdoor traffic cabinets, runs from -40 to 75 °C and mounts on a DIN rail. It is TAA compliant.
Key Features
- 1 x 10G PoE++ RJ-45 output
- Up to 90 W
- 54-56 V DC input
- Operating range -40 to 75 °C
- DIN rail mount, IP31
- NDAA / TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features: Hardened
Connectivity
Interface Provided: 1 x 10 Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE++
Output Connector Quantity: 1
Power
Required Voltage: 54 - 56 volt
Power Device Features: 2 kV surge protection, LED indicators, Overcurrent protection, Overload protection, Redundant power connector, Reverse polarity protection
Input Connector Type: 4 pin terminal block
Power Output Connectors Details: 1 x RJ-45
Power Consumption Operational: 101.4 watt
Power Provided: 90 watt
Form Factor (Power Device): DIN rail mountable
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 594,472 Hours
Dimensions and Weight
Height: 4.1 inch
Width: 1.3 inch
Depth: 3.2 inch
Weight: 6.35 ounce
Certifications and Listing
Compliant Standards: CISPR 32, EN 50058-2-6, EN 55032/35, EN 60068-2-27, EN 60068-2-32, EN62368-1, FCC, FCC Part 15 B Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IP31, NDAA, Telcordia, UKCA, UL 62368-1
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u
ENERGY STAR Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
