Product Information

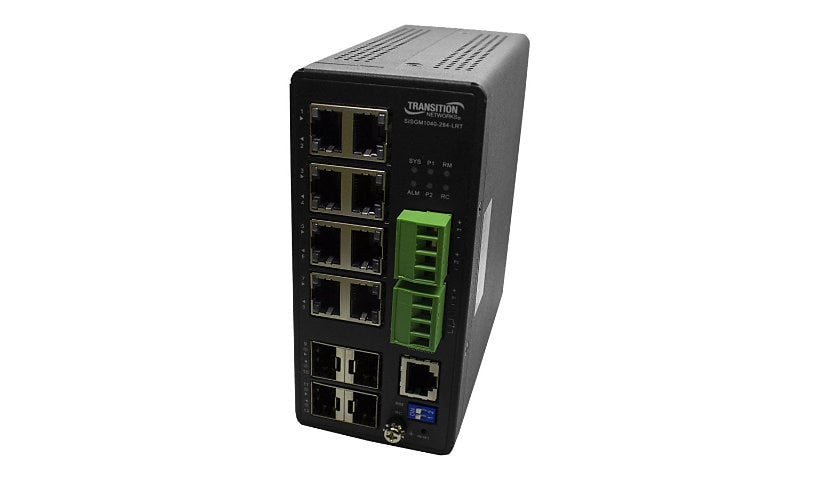

Lantronix's SISGM1040-284-LRT is a hardened managed DIN rail switch with eight Gigabit RJ-45 ports and four 100/1000 SFP uplinks. It runs from -40 to 167 F (-40 to 75 C) in a fanless design, offers 24 Gbps of backplane bandwidth and is TAA compliant.
Key Features
- 8 x 10/100/1000 RJ-45 ports
- 4 x 100/1000 SFP uplinks
- -40 to 167 F, fanless
- 24 Gbps backplane
- Managed, 802.1x, DHCP snooping
- DIN rail, TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix
Model: SISGM1040-284-LRT
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Fast Ethernet
Manageable: Yes
Remote Management: DHCP, IPv4, IPv6, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog
Authentication Method: RADIUS, TACACS+
Performance: Backplane bandwidth: 24 Gbps
MAC Address Table Size: 8K entries
Features: 802.1x authentication, Carrier Sense Multiple Access with Collision Detection (CSMA/CD), CLI management, DHCP relay, DHCP server, DHCP snooping, Fanless, Firmware upgradable, Floor plan view, Hardened, IGMP snooping, Ingress rate limiting, IP address filtering, IP source guard, LLDP support, Map view, Media Redundancy Protocol (MRP), MLD snooping, Multicast mode, Password authentication, Port mirroring, Port trunking, Precision Time Protocol (PTP), Quality of Service (QoS), Spanning Tree Protocol (STP) support, Static routing, Store and forward, Topology view, VLAN support, Web GUI management portal, Weighted Round Robin (WRR)
Software Type: Percepxion IoT Edge Solutions Platform
Connectivity
Ports: 12
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 100/1000 SFP (uplink)
Interface Provided: 1 x console RJ-45, 4 x 1000Base-X SFP, 8 x 10/100/1000 Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: DC 12 - 48 volt
Power Consumption Operational: 11 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
MTBF: 193,332 Hours
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Dimensions and Weight
Height: 5.3 inch
Width: 2.4 inch
Depth: 5.1 inch
Weight: 2.2 lbs
Certifications and Listing
Compliant Standards: EN 62368-1, FCC Class A certified, IEC 61850-3, IEC 62368-1, IEC 62439-2, IEEE 1588 v2, IEEE 1613, IP30, NDAA, NEMA TS-2, UL Class 1 Division 2
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031, ITU-T G.8032, ITU-T Y.1731
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
