Product Information

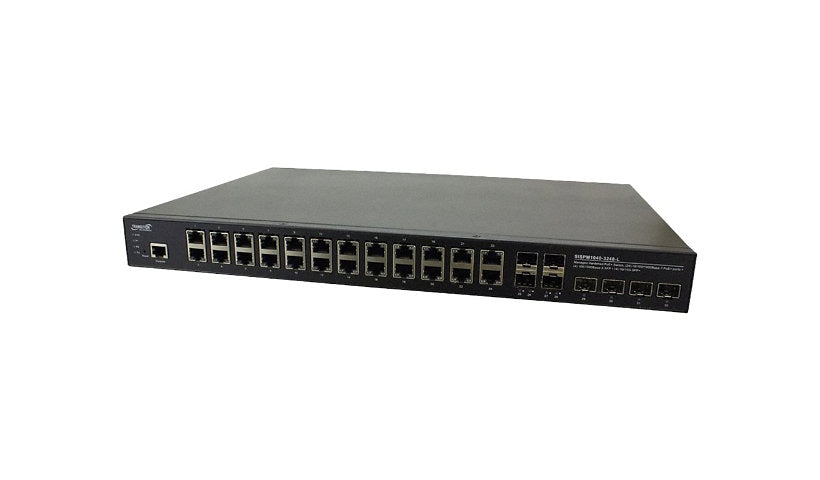

Lantronix's SISPM1040-3248-L is a hardened fanless rack switch with 24 Gigabit PoE+ ports at 30 W, four 100/1000 SFP ports and four 1/10G SFP+ ports. It has a 370 W PoE budget, 136 Gbps of switching capacity and runs from -40 to 140 F.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x 100/1000 SFP ports
- 4 x 1/10G SFP+ ports
- 370 W PoE budget
- 136 Gbps switching capacity
- Fanless, -40 to 140 F
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix
Model: SISPM1040-3248-L
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IP routing
Authentication Method: RADIUS, TACACS+
Performance: Switching capacity: 136 Gbps
MAC Address Table Size: 32K entries
Jumbo Frame Support: 9KB
Features: Access Control List (ACL) support, Carrier Sense Multiple Access with Collision Detection (CSMA/CD), DHCP relay, DHCP server, DHCP snooping, Energy Efficient Ethernet, Fanless, Firmware upgradable, Hardened, IGMP snooping, IP source guard, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, LLDP-MED, MAC based VLAN, Media Redundancy Protocol (MRP), MLD snooping, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, PoE scheduling, Port mirroring, Port Security, Port-based VLAN, Precision Time Protocol (PTP), Private VLAN, Q-in-Q tunneling, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority (SP), Syslog support, Tagged VLAN, VLAN support, Voice VLAN, Weighted Round Robin (WRR)
Features: Redundant Power System (RPS) connector
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1000Base-X SFP
Ports (3rd) Quantity: 4
Interface Provided: 1 x console RJ-45 management, 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 1/10GBase-X SFP+, 4 x 100 / 1000Base-X SFP
Power Over Ethernet (PoE): PoE+
QSFP Slots: 10Gb Ethernet SFP+
Power
Required Voltage: AC 100-250/ DC 52-57 volt
PoE Budget: 370 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 167 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.8 inch
Weight: 11.02 lbs
Certifications and Listing
Compliant Standards: FCC Class A certified, IEC 61850-3, IEC 62439-2, IP30, LVD, NEMA TS-2, UL
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031, ITU-T G.8032, ITU-T Y.1564, ITU-T Y.1731
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
