Product Information

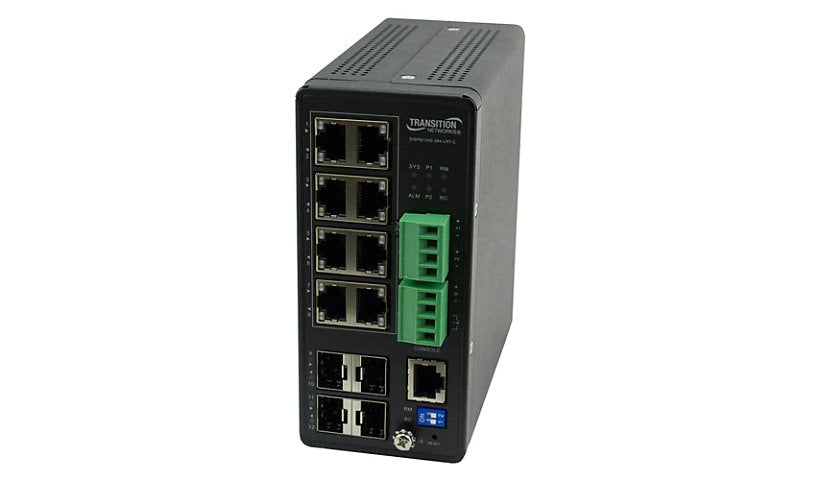

Lantronix's SISPM1040-384-LRT-C is a hardened managed DIN rail switch with eight Gigabit PoE+ ports that can each deliver 30 W at the same time, plus four Gigabit SFP ports. It has a 120 W PoE budget, runs on 48 to 57 V DC with redundant power inputs and is TAA compliant.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x Gigabit SFP ports
- 120 W PoE budget
- 24 Gbps backplane
- 48 to 57 V DC, redundant inputs
- DIN rail bracket, TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix SISPM1040-300 Series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTPS, SCP, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, TCP/IP, Telnet, UDP, Web GUI
Routing Protocol: IGMP, IGMPv2, IGMPv3, Static IP routing
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Performance: Backplane switching capacity: 24 Gbps
Capacity: ACL entries: up to 256, VLAN groups: up to 4000
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9.6KB
Features: Auto Power Reset (APR), Built-in DIP switch, Device Management System (DMS), DHCP client, DHCP Option 82, DHCP relay, DHCP server, DHCP support, DSCP Marking, Ethernet Protection Switched Ring (EPSRing), Ethernet Ring Protection Switching (ERPS), Fanless, Floor plan view, GVRP, Hardened, IP address filtering, IP source guard, IPv4 and IPv6 dual stack, LLDP support, Loop protection, MAC based VLAN, Media Redundancy Protocol (MRP), Over-current protection, PoE scheduling, Port based access control, Port mirroring, Precision Time Protocol (PTP), Private VLAN Edge (PVE), Q-in-Q tunneling, Quality of Service (QoS), Reset button, Reverse polarity protection, Secure Copy (SCP), SNMP trap, Static routing, Store-and-forward technology, Syslog support, Topology view, VLAN ID filtering, VLAN management, Voice VLAN, Wall mountable, Watch Dog Timer (WDT), Web-based management
Software Type: Percepxion IoT Edge Solutions Platform
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1000Base-X SFP
Interface Provided: 1 x console RJ-45 management, 4 x 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: DC 48 - 57 volt
Power Consumption Operational: 11.1 watt
PoE Budget: 120 watt
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 128 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Alarm, Coupling, Port status, Power 1, Power 2, Ring master, System
Dimensions and Weight
Height: 5.1 inch
Width: 2.4 inch
Depth: 5.3 inch
Weight: 2.2 lbs
Included Items
Included Accessories: DIN-rail bracket
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ag, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8032, ITU-T Y.1731
Compliant Standards: DNV, EMI, EN 50121-4, EN 50155, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 62368-1, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 61850-3, IEC 62368-1, IEC 62439-2, IEEE 1613, IP30, NDAA, NEMA TS-2, UL Class 1 Division 2
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
