Product Information

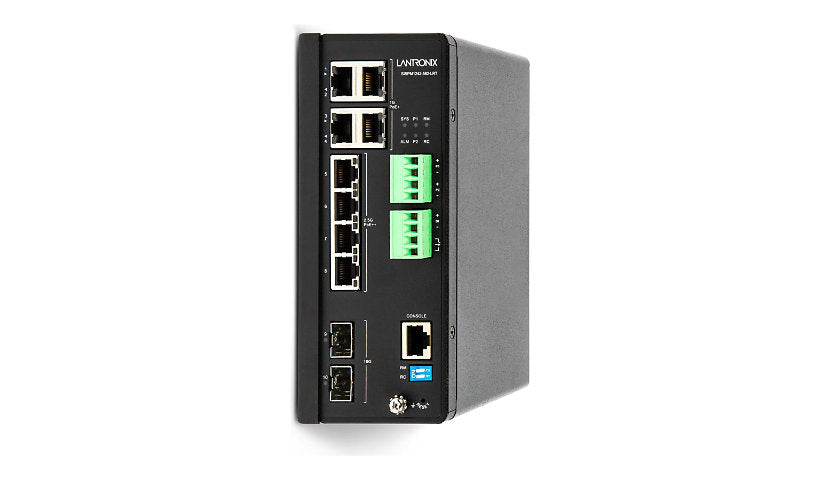

Lantronix's SISPM1242-582-LRT is a hardened managed DIN rail switch with four Gigabit PoE+ ports, four 2.5G PoE++ ports and two 1/10G SFP ports. It has a 360 W PoE budget, runs from -40 to 167 F (-40 to 75 C) and is TAA compliant.
Key Features
- 4 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 100M/1G/2.5G RJ-45 PoE++ ports
- 2 x 1/10G SFP ports
- 360 W PoE budget
- -40 to 167 F operating range
- DIN rail bracket, TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix
Model: SISPM1242-582-LRT
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, IPv4, IPv6, RADIUS, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, TACACS+, TLS
Routing Protocol: IGMP, IGMPv2, IGMPv3, OSPFv2, OSPFv3, RIP-1, RIP-2, Static IP routing
Performance: Switching capacity: 68 Gbps
Capacity: ACL entries: 512, VLAN entries: up to 4000
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9KB
Features: 802.1x authentication, Always on PoE, Auto Power Reset (APR), Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Device Management System (DMS), DHCP relay, DHCP server, DHCP snooping, DHCP support, Dynamic routing, Firmware upgradable, Ingress Layer 2 MAC Access Control Lists (ACLs), IP source guard, Link Aggregation Control Protocol (LACP), Loop protection, MAC based VLAN, Media Redundancy Protocol (MRP), MLD snooping, MLD snooping v2, MSTP support, Multicast VLAN Registration (MVR), PoE scheduling, Port mirroring, Port rate limiting, Port Scheduling, Port Security, Port-based VLAN, Private VLAN, QinQ VLAN, Quality of Service (QoS), Secure web gateway, Spanning Tree Protocol (STP) support, Store-and-forward technology, Storm Control, Syslog support, Trunking, VLAN management, Voice VLAN, Web-based management
Software Type: Percepxion IoT Edge Solutions Platform
Connectivity
Ports: 10
Port Quantity: 4
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 100/1000/2.5G (PoE++)
Ports (3rd) Quantity: 2
Interface Provided: 1 x console RJ-45 management, 2 x 1/10Gbit LAN SFP, 4 x 10/100/1000 Base-T RJ-45 PoE+, 4 x 100/1000/2.5G RJ-45 PoE++
Power Over Ethernet (PoE): PoE++
QSFP Slots: 1/10 Gigabit SFP
Power
Device Type: Internal power supply
Required Voltage: DC 52 - 57 volt
Power Consumption Operational: 13 watt
PoE Budget: 360 watt
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Alarm, Port status, Power 1, Power 2, System
Dimensions and Weight
Height: 6.6 inch
Width: 2.4 inch
Depth: 5.1 inch
Included Items
Included Accessories: DIN-rail bracket
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8031, ITU-T G.8032, ITU-T Y.1731
Compliant Standards: EN 62368-1, FCC Class A certified, IP30, NDAA, NEMA TS-2, UL 2108, UL 62368-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Service Activation: No
