Product Information

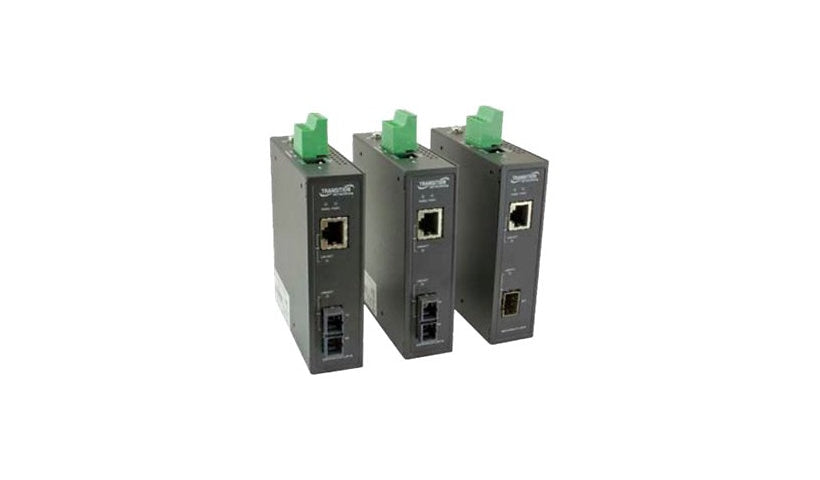

From the Lantronix SISTG-211 Series, the SISTG1040-211-LRT-B is a hardened media converter that links a 10/100/1000 RJ-45 port to a 100/1000 SFP slot. It handles -40 to 167 °F, mounts on a DIN rail, accepts redundant power inputs, passes 9K jumbo frames and is TAA compliant. This is a media converter, not a switch.
Key Features
- RJ-45 to SFP (100/1000)
- Operating range -40 to 167 °F
- DIN rail mount
- Redundant power inputs
- 9K jumbo frames
- TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix SISTG-211 Series
Product Type: Fiber media converter
Packaged Quantity: 1
Color Category: Black
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 1000Base-X, Ethernet 100Base-TX, Ethernet 100Base-X, Ethernet 10Base-T
Data Transfer Rate: 1 GBps
Max Transfer Distance: 328 ft
Features: 9 KB Jumbo Frame, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Link Pass-Through, Reverse polarity protection
Connectivity
Interface Provided: 1 x Ethernet 100Base-X/1000Base-X - SFP, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female
Left Connector SD Type: RJ-45
Right Connector Type (SD): SFP (mini-GBIC)
Power
Device Type: External power adapter
Required Voltage: DC 12-48 volt
Power Consumption Operational: 3.4 watt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 248,741 Hours
Physical Characteristics
Form Factor: DIN Rail Mountable
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 4.3 inch
Width: 1.2 inch
Depth: 3.9 inch
Weight: 15.52 ounce
Included Items
Included Accessories: Mounting brackets
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: Class 1 Division 2, EN 55022 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC Class A certified, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
