Product Information

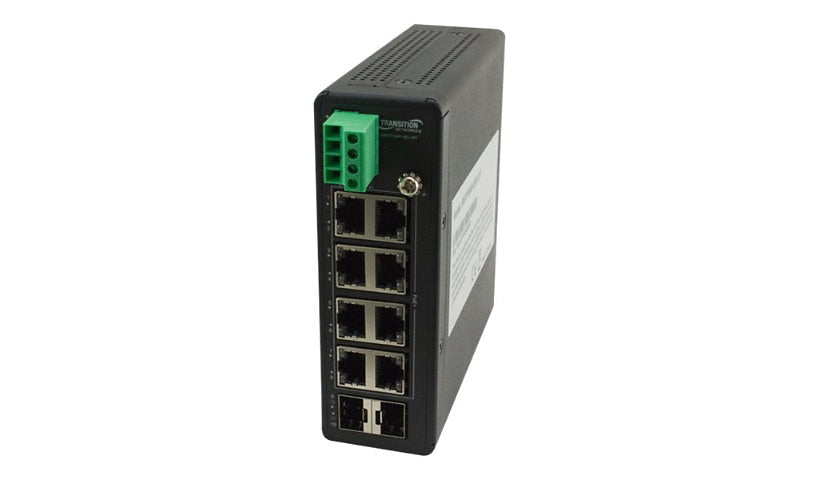

Lantronix's SISTP1040-382-LRT (formerly Transition Networks) is a hardened unmanaged switch with eight Gigabit PoE+ ports and two 100/1000 SFP slots, sharing a 120 W budget. It runs fanless from -40 to 75 °C, takes dual power inputs and mounts on a DIN rail or wall.
Key Features
- 8 x Gigabit PoE+ ports, 30 W each
- 2 x 100/1000 SFP slots
- 120 W PoE budget
- Operating range -40 to 75 °C
- Dual power inputs
- 9K jumbo frames
- DIN rail bracket included
Product Information
Brand: Lantronix
Manufacturer: Transition Networks
Product Line: Lantronix
Model: SISTP1040-382-LRT
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching capacity: 20 Gbps
MAC Address Table Size: 4K entries
Jumbo Frame Support: 9KB
Features: Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Energy Efficient Ethernet, Fanless, Metal housing, Reset button, Store and forward
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 100/1000 SFP
Interface Provided: 2 x 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: DC 48 - 57 volt
PoE Budget: 120 watt
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Port status, Power, System
Dimensions and Weight
Height: 5.3 inch
Width: 1.7 inch
Depth: 5.1 inch
Weight: 16.22 ounce
Included Items
Included Accessories: DIN-rail bracket
Certifications and Listing
Compliant Standards: EN 62368-1, FCC Part 15, IEC 62368-1, IP30, NDAA, UL Class I Division 2
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
