Product Information

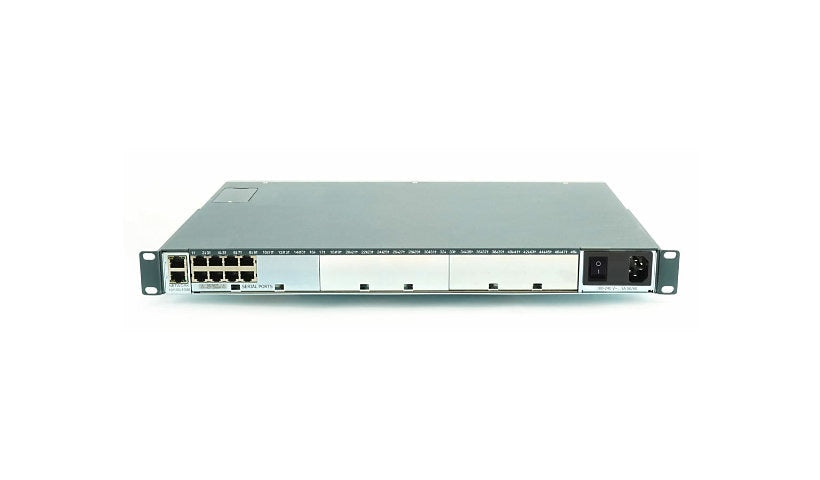

The Lantronix SLC80081201S is an 8 port SLC 8000 console manager with one power supply installed and a second supported. It has eight RS-232 RJ-45 ports, two gigabit RJ-45, a USB 2.0 and a management port, plus a keypad, status LCD and SD/SDHC support. Access is by Telnet, SSH or web console, with IPsec VPN, firewall, packet filtering and AD, LDAP, Kerberos, RADIUS and TACACS+ for up to 352 users. It draws about 30 W in 1U.
Key Features
- 8 RS-232 RJ-45 ports
- 1 PSU, second optional
- Dual gigabit Ethernet
- Keypad and status LCD
- IPsec VPN, firewall
- 1U rack mount
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix SLC
Model: 8000
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: BOOTP, DHCP, DNS, FTP, IPSec, NTP, TCP/IP, UDP/IP
Remote Management: HTTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: RIP, RIP-2
Authentication Method: Active Directory, CHAP, Kerberos, LDAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: AES, SSL 3.0, TLS 1.0
Data Transfer Rate: 1 GBps
Capacity: Concurrent users: 352
Operating System Edition: Linux
Features: 256KB packet buffer, Firewall protection, LDAP support, Manageable, Management Information Base (MIB), Packet filtering, VPN support
Connectivity
Ports: 8
Interface Provided: 1 x management - RJ-45, 1 x USB 2.0 - Type A, 2 x 1000Base-T - RJ-45, 8 x RS-232 - RJ-45
Power
Frequency: 50 - 60 hertz
Power Consumption Operational: 30 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Memory and Processor
Flash Memory Cards Supported: SD Memory Card, SDHC Memory Card
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 30 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: Keypad, Status LCD
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 12 inch
Weight: 11.11 lbs
Certifications and Listing
Compliant Standards: C-Tick, CB, CSA, cUL, EN 60950, EN55022, EN55024, FCC Part 15, FIPS 140-2, FIPS 197, NIST, UL, VCCI
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
