Product Information

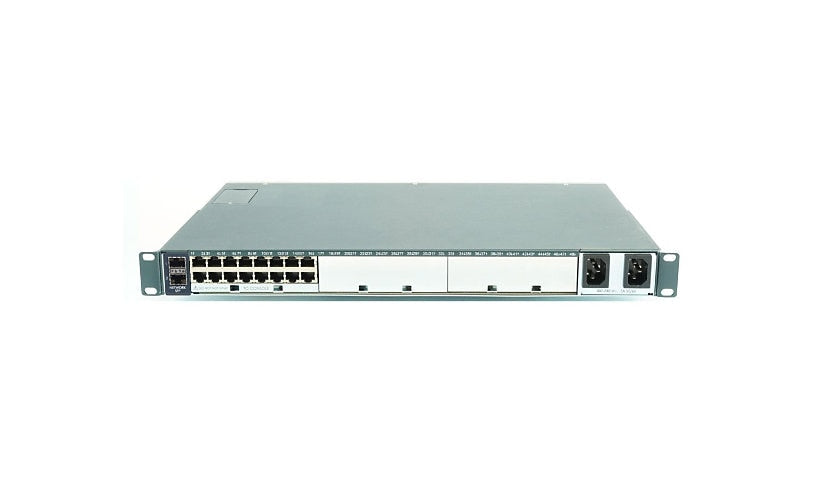

The Lantronix SLC80162211G is a TAA compliant 16 port SLC 8000 console manager with a built-in RJ-11 modem and dual gigabit SFP ports. It has sixteen RS-232 RJ-45 ports at up to 230.4 Kbps, two USB 2.0 and a management port, plus a keypad, status LCD and SD/SDHC support. It supports Telnet, SSH, SCP and web access, IPsec VPN, firewall, TLS up to 1.2 and AD, LDAP, Kerberos, RADIUS and TACACS+ for up to 396 users. Dual redundant supplies draw about 30 W in 1U.
Key Features
- 16 RS-232 RJ-45 ports
- Built-in modem
- Dual gigabit SFP
- Up to 396 users
- Dual redundant PSU
- TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix SLC
Model: 8000
Product Type: Console server
Packaged Quantity: 1
Color Category: Silver
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: BOOTP, DHCP, DNS, FTP, IPSec, NTP, TCP/IP, UDP/IP
Remote Management: HTTP, SCP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: RIP, RIP-2
Authentication Method: Active Directory, CHAP, Kerberos, LDAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: AES, SSL, TLS 1.0, TLS 1.1, TLS 1.2
Data Transfer Rate: 230.4 Kbps
Capacity: Concurrent users: 396
Features: 256KB packet buffer, Firewall protection, LDAP support, Manageable, Management Information Base (MIB), Packet filtering, VPN support
Connectivity
Ports: 16
Interface Provided: 1 x management - RJ-45, 1 x modem - RJ-11, 16 x RS-232 - RJ-45, 2 x 1000Base-T - SFP (mini-GBIC), 2 x USB 2.0 - Type A
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Consumption Operational: 30 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
Flash Memory Cards Supported: SD Memory Card, SDHC Memory Card
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 30 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: Keypad, Status LCD
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 12 inch
Weight: 11.11 lbs
Certifications and Listing
Compliant Standards: C-Tick, CB, CSA, cUL, EN 60950, EN55022, EN55024, FCC Part 15, FIPS 140-2, FIPS 197, IPv6 Ready, NIST, UL, VCCI
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
