Product Information

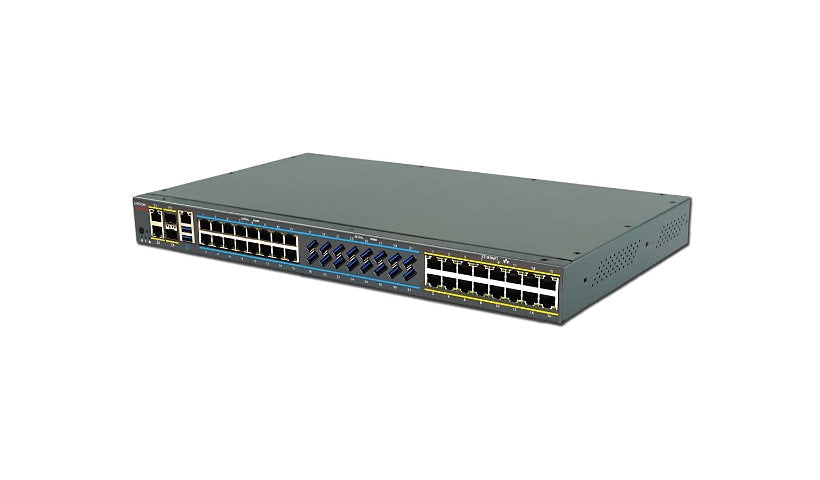

The Lantronix SLC9016-16E-NA is an SLC 9000 console manager with sixteen serial RJ-45 ports and sixteen gigabit RJ-45 Ethernet ports, plus two management RJ-45 and two SFP+ management ports. Attached devices self provision, ports auto identify the connected gear, and the fleet is run from a cloud dashboard that ties into automation tools. An LS1046A at 1.8 GHz with 8 GB LPDDR4 and 128 GB storage adds TPM 2.0. It has an internal supply and comes with rack ears and screws. TAA compliant.
Key Features
- 16 serial plus 16 GbE ports
- 2 x RJ-45, 2 x SFP+ mgmt
- Cloud dashboard managed
- 8 GB RAM, 128 GB storage
- TPM 2.0
- TAA compliant
Product Information
Brand: Lantronix
Manufacturer: Lantronix
Product Line: Lantronix SLC
Model: 9000
Product Type: Console server
Packaged Quantity: 1
Color Category: Gray
Country: North America
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Power button, Trusted Platform Module 2.0 (TPM 2.0)
Connectivity
Ports: 32
Interface Provided: 16 x 1000Base-T - RJ-45, 16 x serial - RJ-45, 2 x management - RJ-45, 2 x management - SFP+
Power
Device Type: Internal power supply
Memory and Processor
Processor Number: LS1046A
Clock Speed: 1.8 GHZ
RAM Installed: 8 GB
Memory Technology: LPDDR4 SDRAM
Hard Drive Capacity: 128 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 20 - 80% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Status Indicators: Power, Status, Warning
Dimensions and Weight
Height: 1.8 inch
Width: 17.5 inch
Depth: 10.5 inch
Weight: 5.95 lbs
Included Items
Included Accessories: 2 rack mounting ears, 4 screws
